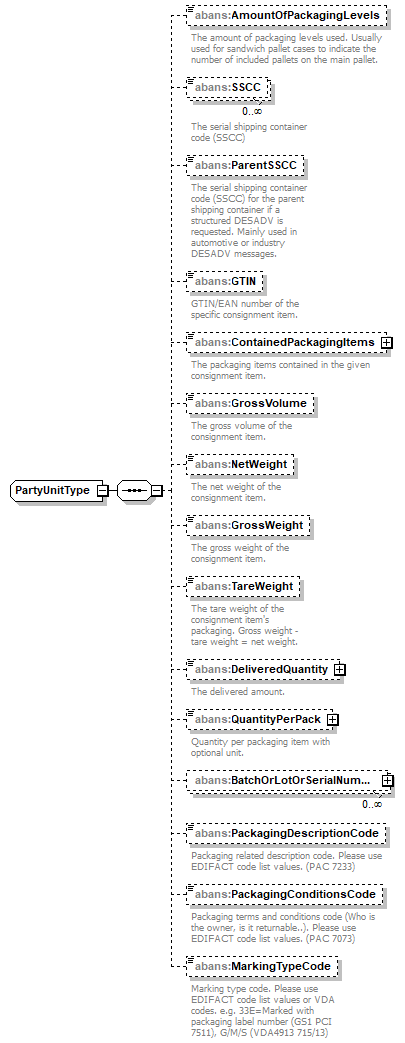

complexType PartyUnitType

diagram
children	abans:AmountOfPackagingLevels abans:SSCC abans:ParentSSCC abans:GTIN abans:ContainedPackagingItems abans:GrossVolume abans:NetWeight abans:GrossWeight abans:TareWeight abans:DeliveredQuantity abans:QuantityPerPack abans:BatchOrLotOrSerialNumber abans:PackagingDescriptionCode abans:PackagingConditionsCode abans:MarkingTypeCode
used by	elements  DocumentType/LineItem/LogisticUnit/TradeUnit/ConsumerUnit/BaseUnit DocumentType/LineItem/LogisticUnit/TradeUnit/ConsumerUnit DocumentType/LineItem/LogisticUnit DocumentType/LineItem/LogisticUnit/TradeUnit

element PartyUnitType/AmountOfPackagingLevels

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The amount of packaging levels used. Usually used for sandwich pallet cases to indicate the number of included pallets on the main pallet.

element PartyUnitType/SSCC

diagram
type	xs:string
properties	minOcc  0 maxOcc  unbounded content  simple
annotation	documentation The serial shipping container code (SSCC)

element PartyUnitType/ParentSSCC

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The serial shipping container code (SSCC) for the parent shipping container if a structured DESADV is requested. Mainly used in automotive or industry DESADV messages.

element PartyUnitType/GTIN

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation GTIN/EAN number of the specific consignment item.

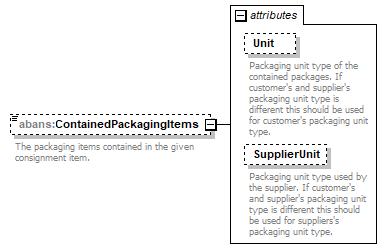

element PartyUnitType/ContainedPackagingItems

diagram
type	extension of xs:string
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Unit   xs:string   optional         documentation Packaging unit type of the contained packages. If customer's and supplier's packaging unit type is different this should be used for customer's packaging unit type. SupplierUnit   xs:string   optional         documentation Packaging unit type used by the supplier. If customer's and supplier's packaging unit type is different this should be used for suppliers's packaging unit type.
annotation	documentation The packaging items contained in the given consignment item.

attribute PartyUnitType/ContainedPackagingItems/@Unit

type	xs:string
properties	use  optional
annotation	documentation Packaging unit type of the contained packages. If customer's and supplier's packaging unit type is different this should be used for customer's packaging unit type.

attribute PartyUnitType/ContainedPackagingItems/@SupplierUnit

type	xs:string
properties	use  optional
annotation	documentation Packaging unit type used by the supplier. If customer's and supplier's packaging unit type is different this should be used for suppliers's packaging unit type.

element PartyUnitType/GrossVolume

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The gross volume of the consignment item.

element PartyUnitType/NetWeight

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The net weight of the consignment item.

element PartyUnitType/GrossWeight

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The gross weight of the consignment item.

element PartyUnitType/TareWeight

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The tare weight of the consignment item's packaging. Gross weight - tare weight = net weight.

element PartyUnitType/DeliveredQuantity

diagram
type	extension of xs:decimal
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Unit   xs:string
annotation	documentation The delivered amount.

attribute PartyUnitType/DeliveredQuantity/@Unit

type

xs:string

element PartyUnitType/QuantityPerPack

diagram
type	extension of xs:decimal
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Unit
annotation	documentation Quantity per packaging item with optional unit.

attribute PartyUnitType/QuantityPerPack/@Unit

---

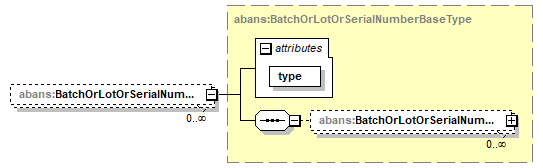

element PartyUnitType/BatchOrLotOrSerialNumber

diagram
type	abans:BatchOrLotOrSerialNumberBaseType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:BatchOrLotOrSerialNumberData
attributes	Name   Type   Use   Default   Fixed   Annotation type   abans:BatchOrLotOrSerialNumberEnum   required

element PartyUnitType/PackagingDescriptionCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Packaging related description code. Please use EDIFACT code list values. (PAC 7233)

element PartyUnitType/PackagingConditionsCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Packaging terms and conditions code (Who is the owner, is it returnable..). Please use EDIFACT code list values. (PAC 7073)

element PartyUnitType/MarkingTypeCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Marking type code. Please use EDIFACT code list values or VDA codes. e.g. 33E=Marked with packaging label number (GS1 PCI 7511), G/M/S (VDA4913 715/13)
