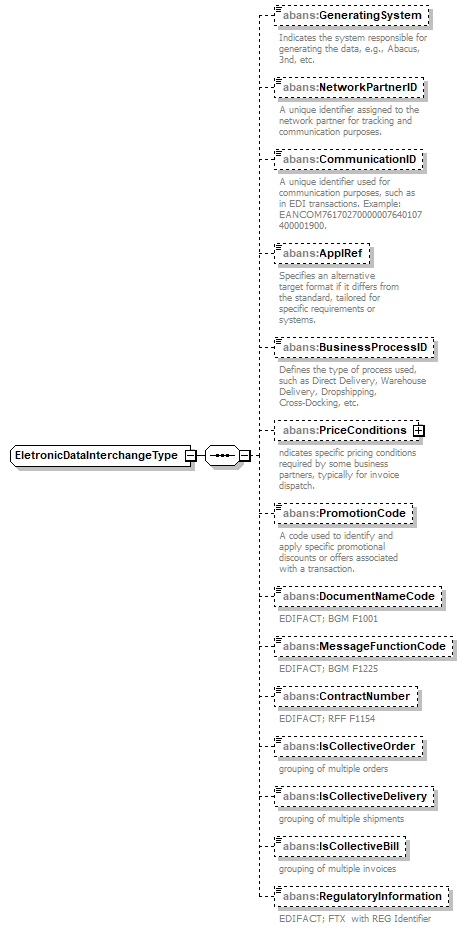

complexType EletronicDataInterchangeType

diagram
children	abans:GeneratingSystem abans:NetworkPartnerID abans:CommunicationID abans:ApplRef abans:BusinessProcessID abans:PriceConditions abans:PromotionCode abans:DocumentNameCode abans:MessageFunctionCode abans:ContractNumber abans:IsCollectiveOrder abans:IsCollectiveDelivery abans:IsCollectiveBill abans:RegulatoryInformation
used by	element  DocumentType/Header/EletronicDataInterchange

element EletronicDataInterchangeType/GeneratingSystem

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Indicates the system responsible for generating the data, e.g., Abacus, 3nd, etc.

element EletronicDataInterchangeType/NetworkPartnerID

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation A unique identifier assigned to the network partner for tracking and communication purposes.

element EletronicDataInterchangeType/CommunicationID

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation A unique identifier used for communication purposes, such as in EDI transactions. Example: EANCOM76170270000007640107400001900.

element EletronicDataInterchangeType/ApplRef

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Specifies an alternative target format if it differs from the standard, tailored for specific requirements or systems.

element EletronicDataInterchangeType/BusinessProcessID

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Defines the type of process used, such as Direct Delivery, Warehouse Delivery, Dropshipping, Cross-Docking, etc.

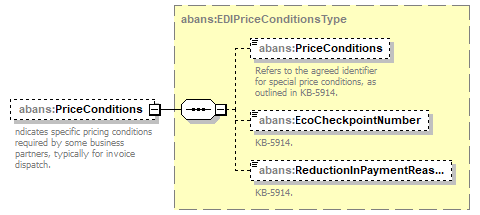

element EletronicDataInterchangeType/PriceConditions

diagram
type	abans:EDIPriceConditionsType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:PriceConditions abans:EcoCheckpointNumber abans:ReductionInPaymentReasonText
annotation	documentation ndicates specific pricing conditions required by some business partners, typically for invoice dispatch.

element EletronicDataInterchangeType/PromotionCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation A code used to identify and apply specific promotional discounts or offers associated with a transaction.

element EletronicDataInterchangeType/DocumentNameCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation EDIFACT; BGM F1001

element EletronicDataInterchangeType/MessageFunctionCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation EDIFACT; BGM F1225

element EletronicDataInterchangeType/ContractNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation EDIFACT; RFF F1154

element EletronicDataInterchangeType/IsCollectiveOrder

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation grouping of multiple orders

element EletronicDataInterchangeType/IsCollectiveDelivery

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation grouping of multiple shipments

element EletronicDataInterchangeType/IsCollectiveBill

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation grouping of multiple invoices

element EletronicDataInterchangeType/RegulatoryInformation

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation EDIFACT; FTX  with REG Identifier
