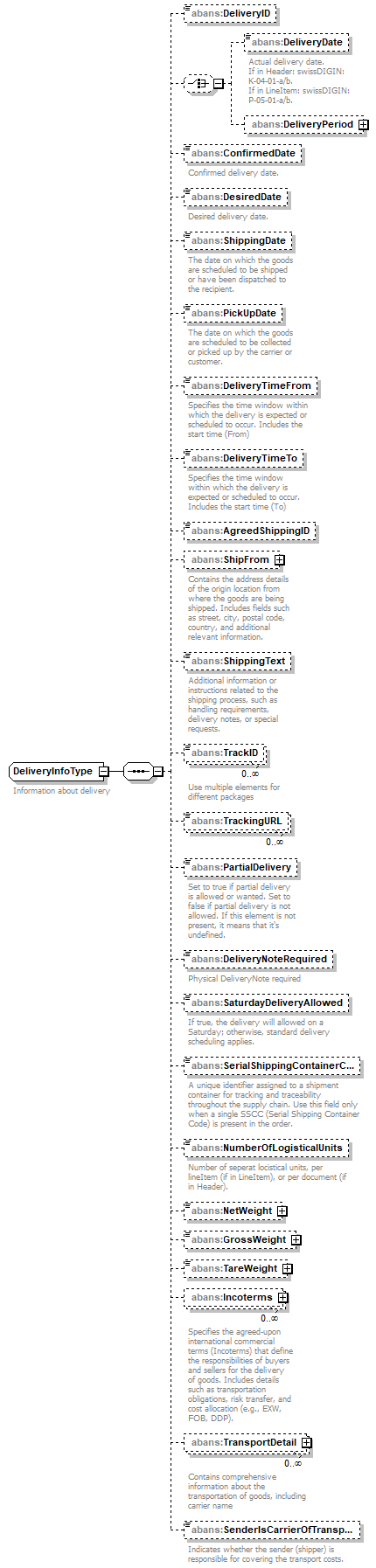

complexType DeliveryInfoType

diagram
children	abans:DeliveryID abans:DeliveryDate abans:DeliveryPeriod abans:ConfirmedDate abans:DesiredDate abans:ShippingDate abans:PickUpDate abans:DeliveryTimeFrom abans:DeliveryTimeTo abans:AgreedShippingID abans:ShipFrom abans:ShippingText abans:TrackID abans:TrackingURL abans:PartialDelivery abans:DeliveryNoteRequired abans:SaturdayDeliveryAllowed abans:SerialShippingContainerCode abans:NumberOfLogisticalUnits abans:NetWeight abans:GrossWeight abans:TareWeight abans:Incoterms abans:TransportDetail abans:SenderIsCarrierOfTransportCost
used by	elements  DocumentType/Header/DeliveryInfo DocumentType/LineItem/DeliveryInfo DocumentType/Header/DeliveryInfo/GlobalShipmentIdentificationNumber/SerialShippingContainerCode
annotation	documentation Information about delivery

element DeliveryInfoType/DeliveryID

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

element DeliveryInfoType/DeliveryDate

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Actual delivery date. If in Header: swissDIGIN: K-04-01-a/b. If in LineItem: swissDIGIN: P-05-01-a/b.

element DeliveryInfoType/DeliveryPeriod

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:FromDate abans:ToDate

element DeliveryInfoType/DeliveryPeriod/FromDate

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple

element DeliveryInfoType/DeliveryPeriod/ToDate

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple

element DeliveryInfoType/ConfirmedDate

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Confirmed delivery date.

element DeliveryInfoType/DesiredDate

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Desired delivery date.

element DeliveryInfoType/ShippingDate

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The date on which the goods are scheduled to be shipped or have been dispatched to the recipient.

element DeliveryInfoType/PickUpDate

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The date on which the goods are scheduled to be collected or picked up by the carrier or customer.

element DeliveryInfoType/DeliveryTimeFrom

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Specifies the time window within which the delivery is expected or scheduled to occur. Includes the start time (From)

element DeliveryInfoType/DeliveryTimeTo

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Specifies the time window within which the delivery is expected or scheduled to occur. Includes the start time (To)

element DeliveryInfoType/AgreedShippingID

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

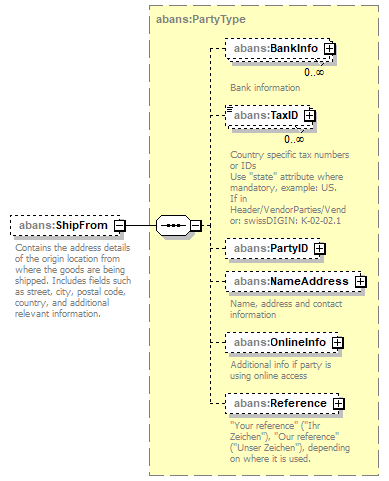

element DeliveryInfoType/ShipFrom

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Contains the address details of the origin location from where the goods are being shipped. Includes fields such as street, city, postal code, country, and additional relevant information.

element DeliveryInfoType/ShippingText

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Additional information or instructions related to the shipping process, such as handling requirements, delivery notes, or special requests.

element DeliveryInfoType/TrackID

diagram
type	xs:string
properties	minOcc  0 maxOcc  unbounded content  simple
annotation	documentation Use multiple elements for different packages

element DeliveryInfoType/TrackingURL

diagram
type	xs:string
properties	minOcc  0 maxOcc  unbounded content  simple

element DeliveryInfoType/PartialDelivery

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Set to true if partial delivery is allowed or wanted. Set to false if partial delivery is not allowed. If this element is not present, it means that it's undefined.

element DeliveryInfoType/DeliveryNoteRequired

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Physical DeliveryNote required

element DeliveryInfoType/SaturdayDeliveryAllowed

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If true, the delivery will allowed on a Saturday; otherwise, standard delivery scheduling applies.

element DeliveryInfoType/SerialShippingContainerCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation A unique identifier assigned to a shipment container for tracking and traceability throughout the supply chain. Use this field only when a single SSCC (Serial Shipping Container Code) is present in the order.

element DeliveryInfoType/NumberOfLogisticalUnits

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Number of seperat locistical units, per lineItem (if in LineItem), or per document (if in Header).

element DeliveryInfoType/NetWeight

diagram
type	extension of xs:decimal
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Unit   xs:string

attribute DeliveryInfoType/NetWeight/@Unit

type

xs:string

element DeliveryInfoType/GrossWeight

diagram
type	extension of xs:decimal
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Unit   xs:string

attribute DeliveryInfoType/GrossWeight/@Unit

type

xs:string

element DeliveryInfoType/TareWeight

diagram
type	extension of xs:decimal
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Unit   xs:string

attribute DeliveryInfoType/TareWeight/@Unit

type

xs:string

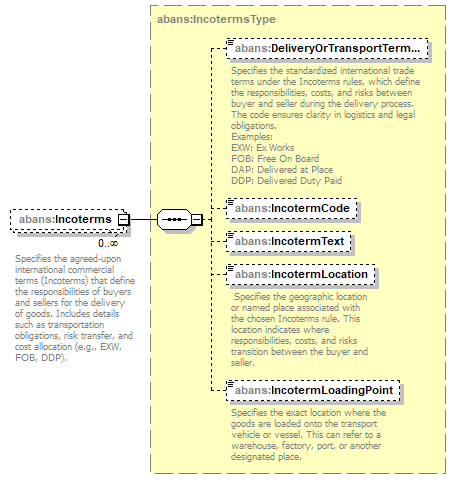

element DeliveryInfoType/Incoterms

diagram
type	abans:IncotermsType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:DeliveryOrTransportTermsCode abans:IncotermCode abans:IncotermText abans:IncotermLocation abans:IncotermLoadingPoint
annotation	documentation Specifies the agreed-upon international commercial terms (Incoterms) that define the responsibilities of buyers and sellers for the delivery of goods. Includes details such as transportation obligations, risk transfer, and cost allocation (e.g., EXW, FOB, DDP).

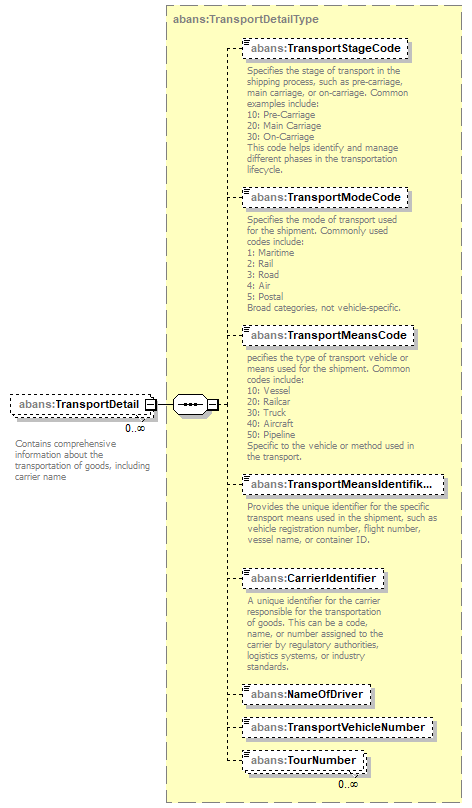

element DeliveryInfoType/TransportDetail

diagram
type	abans:TransportDetailType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:TransportStageCode abans:TransportModeCode abans:TransportMeansCode abans:TransportMeansIdentifikation abans:CarrierIdentifier abans:NameOfDriver abans:TransportVehicleNumber abans:TourNumber
annotation	documentation Contains comprehensive information about the transportation of goods, including carrier name

element DeliveryInfoType/SenderIsCarrierOfTransportCost

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Indicates whether the sender (shipper) is responsible for covering the transport costs.
