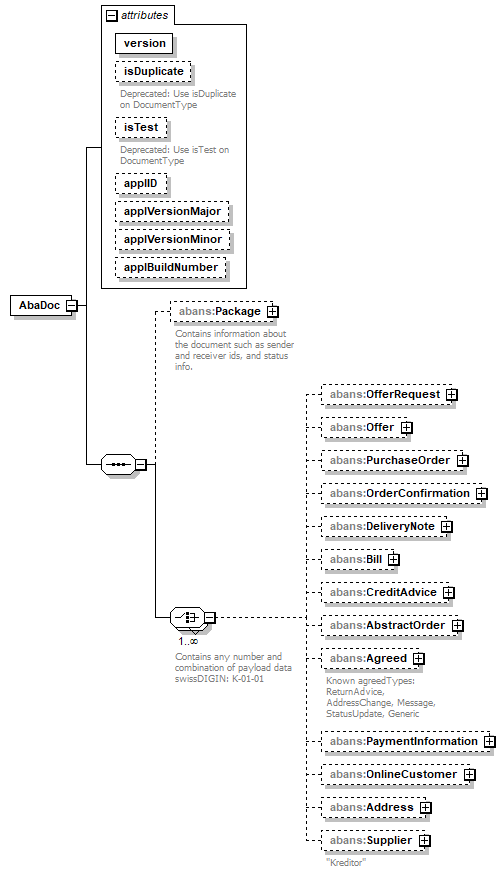

element AbaDoc

diagram
properties	content  complex
children	abans:Package abans:OfferRequest abans:Offer abans:PurchaseOrder abans:OrderConfirmation abans:DeliveryNote abans:Bill abans:CreditAdvice abans:AbstractOrder abans:Agreed abans:PaymentInformation abans:OnlineCustomer abans:Address abans:Supplier
attributes	Name   Type   Use   Default   Fixed   Annotation version   xs:decimal   required         isDuplicate   xs:boolean   optional   false      documentation Deprecated: Use isDuplicate on DocumentType isTest   xs:boolean   optional   false      documentation Deprecated: Use isTest on DocumentType applID   xs:string   optional         applVersionMajor   xs:string   optional         applVersionMinor   xs:string   optional         applBuildNumber   xs:string   optional

attribute AbaDoc/@version

type	xs:decimal
properties	use  required

attribute AbaDoc/@isDuplicate

type	xs:boolean
properties	use  optional default  false
annotation	documentation Deprecated: Use isDuplicate on DocumentType

attribute AbaDoc/@isTest

type	xs:boolean
properties	use  optional default  false
annotation	documentation Deprecated: Use isTest on DocumentType

attribute AbaDoc/@applID

type	xs:string
properties	use  optional

attribute AbaDoc/@applVersionMajor

type	xs:string
properties	use  optional

attribute AbaDoc/@applVersionMinor

type	xs:string
properties	use  optional

attribute AbaDoc/@applBuildNumber

type	xs:string
properties	use  optional

element AbaDoc/Package

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:InterchangeSender abans:InterchangeReceiver
annotation	documentation Contains information about the document such as sender and receiver ids, and status info.

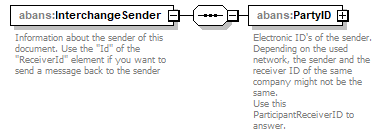

element AbaDoc/Package/InterchangeSender

diagram
properties	content  complex
children	abans:PartyID
annotation	documentation Information about the sender of this document. Use the "Id" of the "ReceiverId" element if you want to send a message back to the sender

element AbaDoc/Package/InterchangeSender/PartyID

diagram
type	abans:PartyIDType
properties	content  complex
children	abans:SenderID abans:ReceiverID abans:EAN abans:DUNS abans:GLN abans:InternalIDByOtherParty abans:AgreedID
annotation	documentation Electronic ID's of the sender. Depending on the used network, the sender and the receiver ID of the same company might not be the same. Use this ParticipantReceiverID to answer.

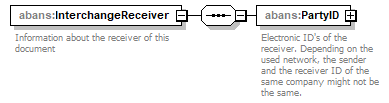

element AbaDoc/Package/InterchangeReceiver

diagram
properties	content  complex
children	abans:PartyID
annotation	documentation Information about the receiver of this document

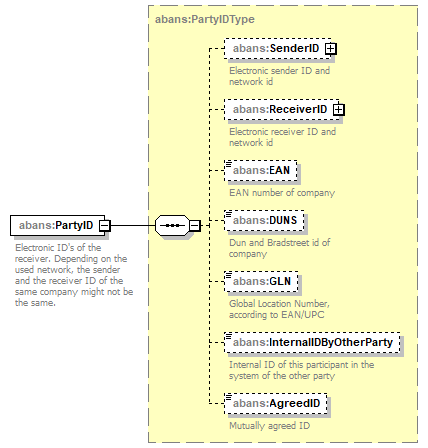

element AbaDoc/Package/InterchangeReceiver/PartyID

diagram
type	abans:PartyIDType
properties	content  complex
children	abans:SenderID abans:ReceiverID abans:EAN abans:DUNS abans:GLN abans:InternalIDByOtherParty abans:AgreedID
annotation	documentation Electronic ID's of the receiver. Depending on the used network, the sender and the receiver ID of the same company might not be the same.

element AbaDoc/OfferRequest

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

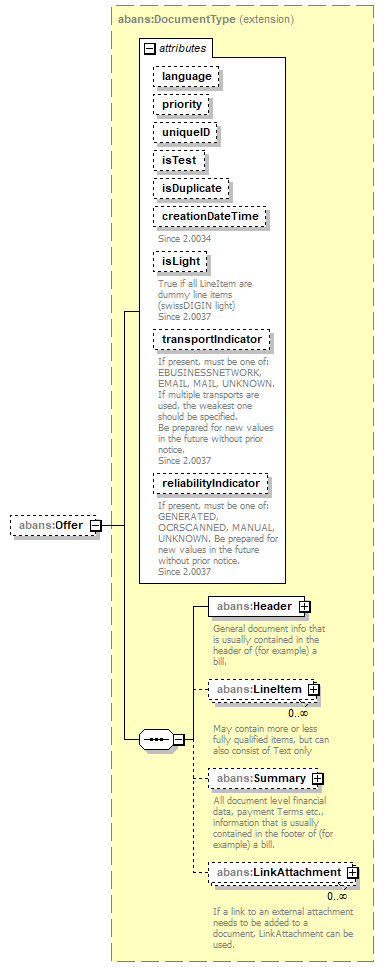

element AbaDoc/Offer

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

element AbaDoc/PurchaseOrder

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

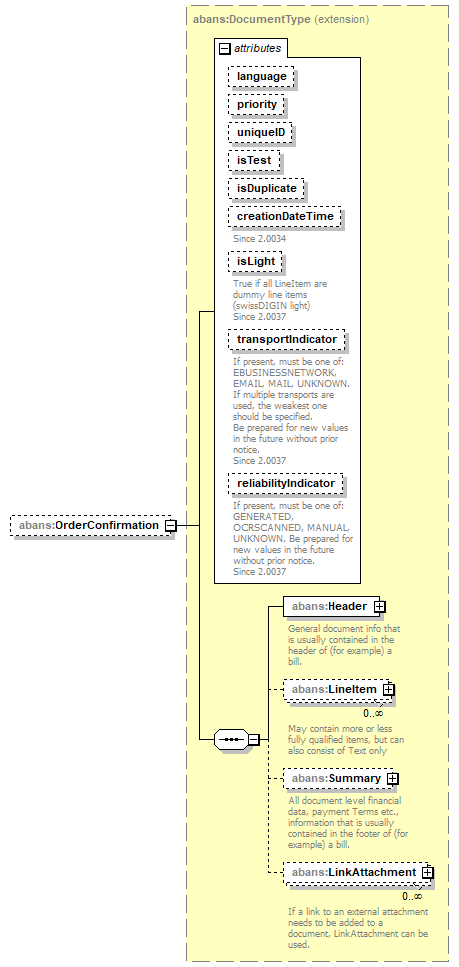

element AbaDoc/OrderConfirmation

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

element AbaDoc/DeliveryNote

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

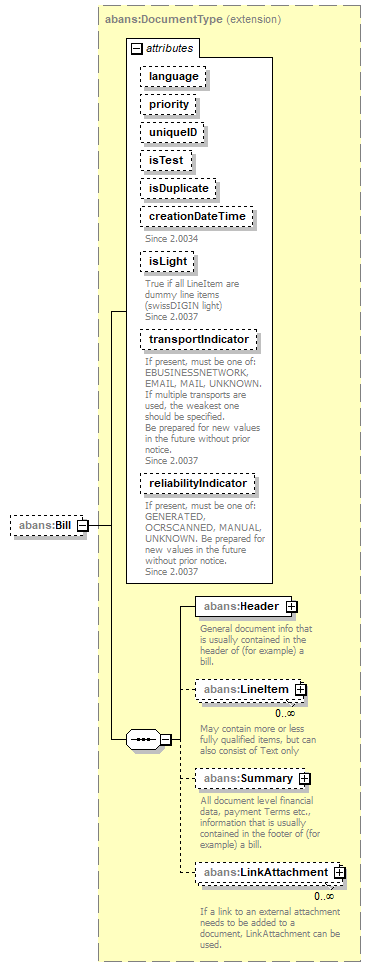

element AbaDoc/Bill

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

element AbaDoc/CreditAdvice

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

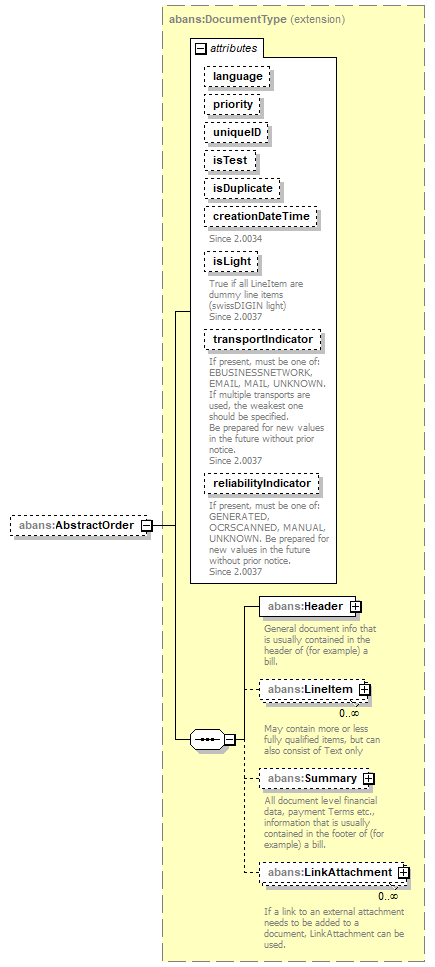

element AbaDoc/AbstractOrder

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

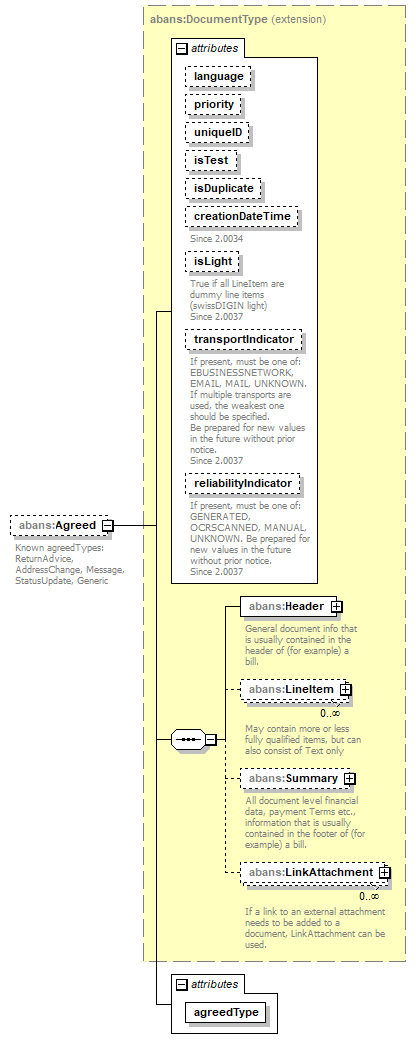

element AbaDoc/Agreed

diagram
type	extension of abans:DocumentType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary abans:LinkAttachment
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037 agreedType   xs:string   required
annotation	documentation Known agreedTypes: ReturnAdvice, AddressChange, Message, StatusUpdate, Generic

attribute AbaDoc/Agreed/@agreedType

type	xs:string
properties	use  required

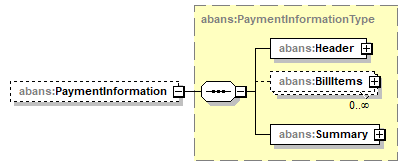

element AbaDoc/PaymentInformation

diagram
type	abans:PaymentInformationType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:BillItems abans:Summary

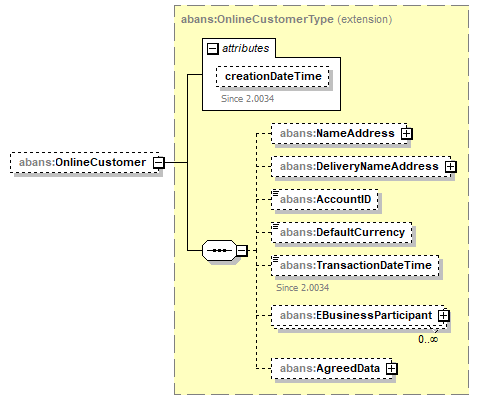

element AbaDoc/OnlineCustomer

diagram
type	extension of abans:OnlineCustomerType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:NameAddress abans:DeliveryNameAddress abans:AccountID abans:DefaultCurrency abans:TransactionDateTime abans:EBusinessParticipant abans:AgreedData
attributes	Name   Type   Use   Default   Fixed   Annotation creationDateTime   xs:dateTime            documentation Since 2.0034

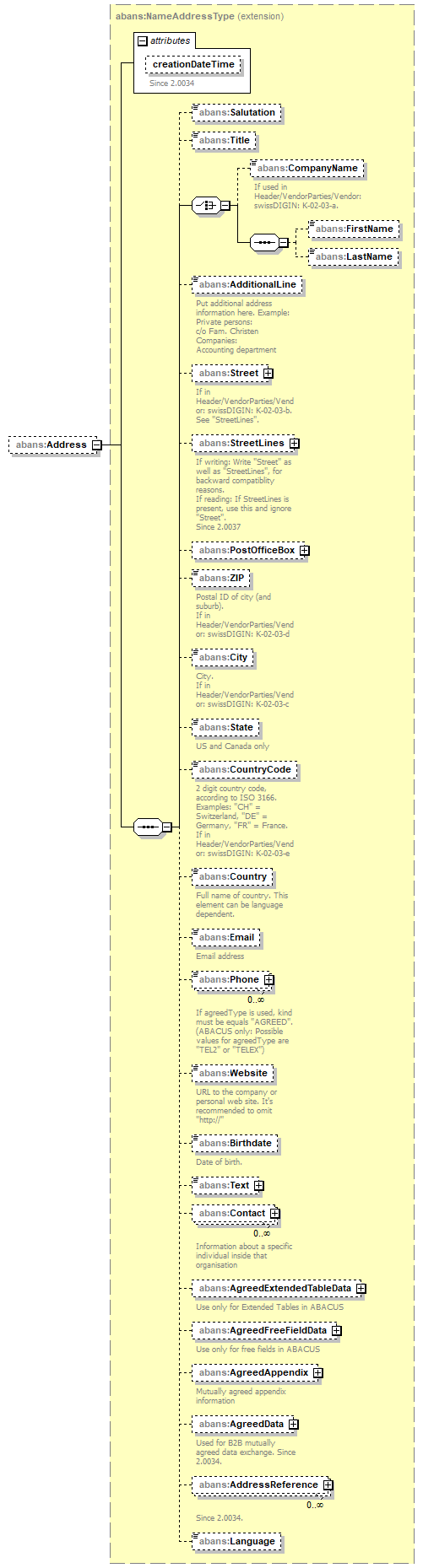

element AbaDoc/Address

diagram
type	extension of abans:NameAddressType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:StreetLines abans:PostOfficeBox abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   Annotation creationDateTime   xs:dateTime            documentation Since 2.0034

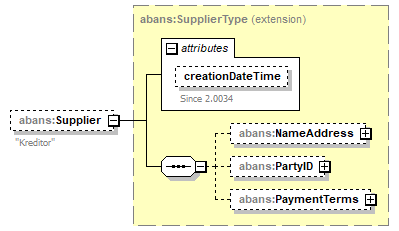

element AbaDoc/Supplier

diagram
type	extension of abans:SupplierType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:NameAddress abans:PartyID abans:PaymentTerms
attributes	Name   Type   Use   Default   Fixed   Annotation creationDateTime   xs:dateTime            documentation Since 2.0034
annotation	documentation "Kreditor"
