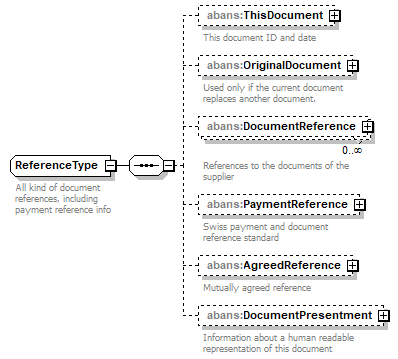

complexType ReferenceType

diagram
children	abans:ThisDocument abans:OriginalDocument abans:DocumentReference abans:PaymentReference abans:AgreedReference abans:DocumentPresentment
used by	elements  DocumentType/Header/Reference PaymentInformationType/Header/Reference
annotation	documentation All kind of document references, including payment reference info

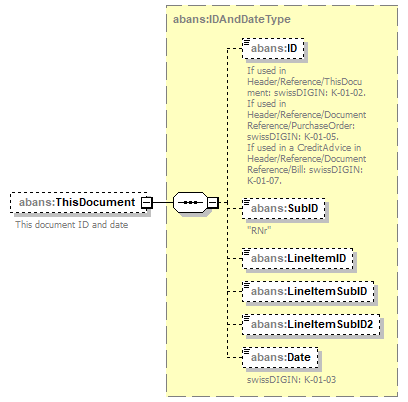

element ReferenceType/ThisDocument

diagram
type	abans:IDAndDateType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation This document ID and date

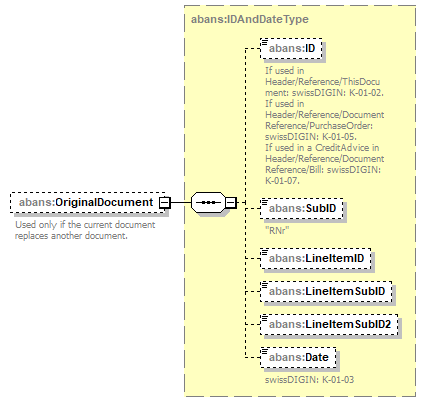

element ReferenceType/OriginalDocument

diagram
type	abans:IDAndDateType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Used only if the current document replaces another document.

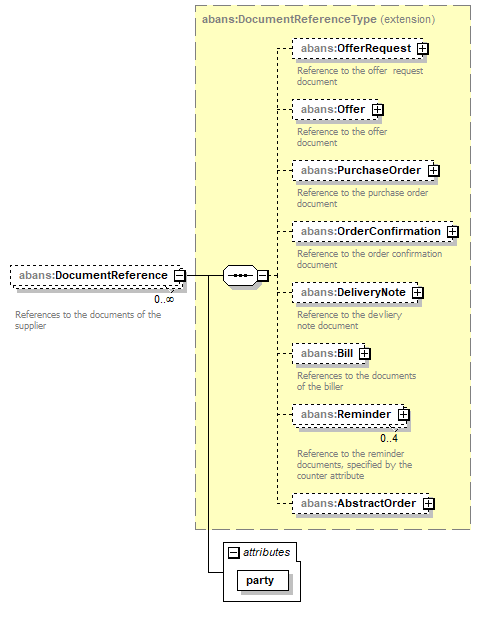

element ReferenceType/DocumentReference

diagram
type	extension of abans:DocumentReferenceType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:OfferRequest abans:Offer abans:PurchaseOrder abans:OrderConfirmation abans:DeliveryNote abans:Bill abans:Reminder abans:AbstractOrder
attributes	Name   Type   Use   Default   Fixed   Annotation party   abans:PartyReferenceType   required
annotation	documentation References to the documents of the supplier

attribute ReferenceType/DocumentReference/@party

type	abans:PartyReferenceType
properties	use  required
facets	Kind  Value  Annotation enumeration  CUSTOMER enumeration  VENDOR

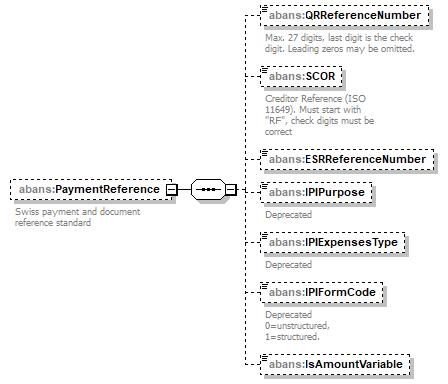

element ReferenceType/PaymentReference

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:QRReferenceNumber abans:SCOR abans:ESRReferenceNumber abans:IPIPurpose abans:IPIExpensesType abans:IPIFormCode abans:IsAmountVariable
annotation	documentation Swiss payment and document reference standard

element ReferenceType/PaymentReference/QRReferenceNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Max. 27 digits, last digit is the check digit. Leading zeros may be omitted.

element ReferenceType/PaymentReference/SCOR

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Creditor Reference (ISO 11649). Must start with "RF", check digits must be correct

element ReferenceType/PaymentReference/ESRReferenceNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

element ReferenceType/PaymentReference/IPIPurpose

diagram
type	restriction of xs:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  35
annotation	documentation Deprecated

element ReferenceType/PaymentReference/IPIExpensesType

diagram
type	abans:IPIExpensesEnum
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  ORDERINGCUSTOMER enumeration  BENEFICIARY enumeration  SHARED
annotation	documentation Deprecated

element ReferenceType/PaymentReference/IPIFormCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Deprecated 0=unstructured, 1=structured.

element ReferenceType/PaymentReference/IsAmountVariable

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple

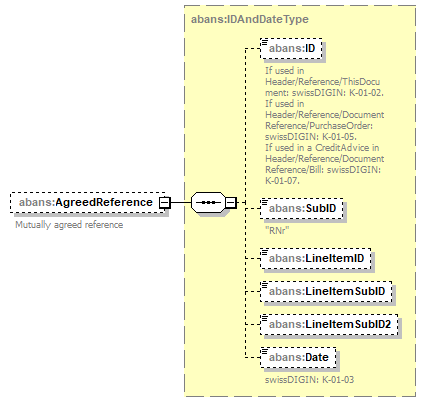

element ReferenceType/AgreedReference

diagram
type	abans:IDAndDateType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Mutually agreed reference

element ReferenceType/DocumentPresentment

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:PresentmentURL
annotation	documentation Information about a human readable representation of this document

element ReferenceType/DocumentPresentment/PresentmentURL

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HTTP or HTTPS URL to a human readable representation of this document
