complexType BankInfoType

diagram
children	abans:IBAN abans:Bank abans:ESRParticipantID abans:PostalAccount
used by	element  PartyType/BankInfo
attributes	Name   Type   Use   Default   Fixed   Annotation currency   abans:CurrencyType   optional
annotation	documentation Bank info of a Party

attribute BankInfoType/@currency

type	abans:CurrencyType
properties	use  optional
facets	Kind  Value  Annotation pattern  \p{Lu}\p{Lu}\p{Lu}

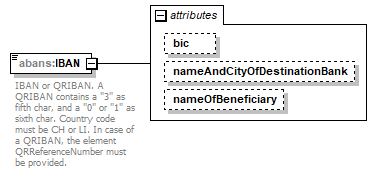

element BankInfoType/IBAN

diagram
type	extension of xs:string
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation bic   xs:string   optional         nameAndCityOfDestinationBank   xs:string   optional         nameOfBeneficiary   xs:string   optional
annotation	documentation IBAN or QRIBAN. A QRIBAN contains a "3" as fifth char, and a "0" or "1" as sixth char. Country code must be CH or LI. In case of a QRIBAN, the element QRReferenceNumber must be provided.

attribute BankInfoType/IBAN/@bic

type	xs:string
properties	use  optional

attribute BankInfoType/IBAN/@nameAndCityOfDestinationBank

type	xs:string
properties	use  optional

attribute BankInfoType/IBAN/@nameOfBeneficiary

type	xs:string
properties	use  optional

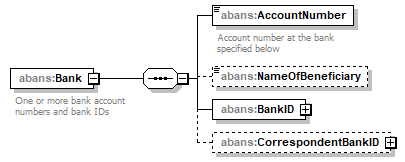

element BankInfoType/Bank

diagram
properties	content  complex
children	abans:AccountNumber abans:NameOfBeneficiary abans:BankID abans:CorrespondentBankID
annotation	documentation One or more bank account numbers and bank IDs

element BankInfoType/Bank/AccountNumber

diagram
type	xs:string
properties	content  simple
annotation	documentation Account number at the bank specified below

element BankInfoType/Bank/NameOfBeneficiary

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

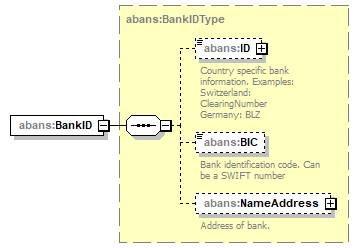

element BankInfoType/Bank/BankID

diagram
type	abans:BankIDType
properties	content  complex
children	abans:ID abans:BIC abans:NameAddress

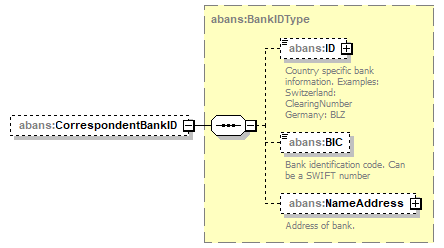

element BankInfoType/Bank/CorrespondentBankID

diagram
type	abans:BankIDType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:BIC abans:NameAddress

element BankInfoType/ESRParticipantID

diagram
type	xs:string
properties	content  simple
annotation	documentation Swiss Payment System

element BankInfoType/PostalAccount

diagram
type	xs:string
properties	content  simple
annotation	documentation For example in Switzerland: "Postkonto" number

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
