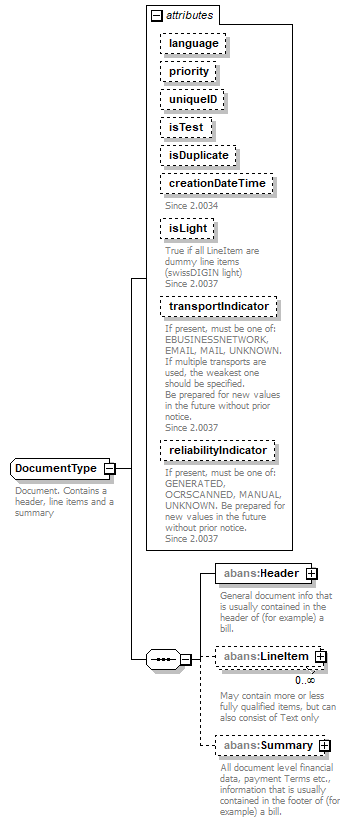

complexType DocumentType

diagram
children	abans:Header abans:LineItem abans:Summary
used by	elements  AbaDoc/AbstractOrder AbaDoc/Agreed AbaDoc/Bill AbaDoc/CreditAdvice AbaDoc/DeliveryNote AbaDoc/Offer AbaDoc/OfferRequest AbaDoc/OrderConfirmation AbaDoc/PurchaseOrder
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         priority   abans:PriorityEnum   optional         uniqueID   xs:string   optional         isTest   xs:boolean   optional   false      isDuplicate   xs:boolean   optional   false      creationDateTime   xs:dateTime            documentation Since 2.0034 isLight   xs:boolean   optional   false      documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037 transportIndicator   xs:string   optional         documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037 reliabilityIndicator   xs:string   optional         documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037
annotation	documentation Document. Contains a header, line items and a summary

attribute DocumentType/@language

type	abans:LanguageType
properties	use  optional
facets	Kind  Value  Annotation minLength  2

attribute DocumentType/@priority

type	abans:PriorityEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  LOW enumeration  NORMAL enumeration  HIGH

attribute DocumentType/@uniqueID

type	xs:string
properties	use  optional

attribute DocumentType/@isTest

type	xs:boolean
properties	use  optional default  false

attribute DocumentType/@isDuplicate

type	xs:boolean
properties	use  optional default  false

attribute DocumentType/@creationDateTime

type	xs:dateTime
annotation	documentation Since 2.0034

attribute DocumentType/@isLight

type	xs:boolean
properties	use  optional default  false
annotation	documentation True if all LineItem are dummy line items (swissDIGIN light) Since 2.0037

attribute DocumentType/@transportIndicator

type	xs:string
properties	use  optional
annotation	documentation If present, must be one of: EBUSINESSNETWORK, EMAIL, MAIL, UNKNOWN. If multiple transports are used, the weakest one should be specified. Be prepared for new values in the future without prior notice. Since 2.0037

attribute DocumentType/@reliabilityIndicator

type	xs:string
properties	use  optional
annotation	documentation If present, must be one of: GENERATED, OCRSCANNED, MANUAL, UNKNOWN. Be prepared for new values in the future without prior notice. Since 2.0037

element DocumentType/Header

diagram
properties	content  complex
children	abans:Reference abans:VendorParties abans:CustomerParties abans:AgreedAddress abans:DeliveryInfo abans:Agent abans:Text abans:AccountAssignment abans:MiscData abans:MiscDataHeader abans:AgreedExtendedTableData abans:AgreedUserFieldData abans:AgreedFreeFieldData abans:AgreedVariableData abans:AgreedData
annotation	documentation General document info that is usually contained in the header of (for example) a bill.

element DocumentType/Header/Reference

diagram
type	extension of abans:ReferenceType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:ThisDocument abans:OriginalDocument abans:DocumentReference abans:PaymentReference abans:AgreedReference abans:DocumentPresentment
annotation	documentation References to other documents of the same business case and to other information like payment

element DocumentType/Header/VendorParties

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Vendor abans:Biller abans:Supplier abans:Manufacturer
annotation	documentation Info about different possible parties on the Vendor side

element DocumentType/Header/VendorParties/Vendor

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Vendor information

element DocumentType/Header/VendorParties/Biller

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Biller information. Use this tag only of it contains information different from the Vendor. The Issuer Of Invoice is this address, if this element exists. Otherwise, the Issuer Of Invoice is the Vendor Element.

element DocumentType/Header/VendorParties/Supplier

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Supplier information. Use this tag only of it contains information different from the Vendor.

element DocumentType/Header/VendorParties/Manufacturer

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Original manufacturer information. Use this tag only of it contains information different from the Vendor.

element DocumentType/Header/CustomerParties

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Customer abans:DeliveryAddress abans:Payer abans:PurchaseOrderer abans:Consignee
annotation	documentation Info about different possible parties on the Customer side

element DocumentType/Header/CustomerParties/Customer

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Customer information

element DocumentType/Header/CustomerParties/DeliveryAddress

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Delivery information. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/CustomerParties/Payer

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Payer information. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/CustomerParties/PurchaseOrderer

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation PurchaseOrderer information. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/CustomerParties/Consignee

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Ultimate Consignee information, for example a local store. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/AgreedAddress

diagram
type	abans:AgreedAddressType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Address
annotation	documentation Info about different possible parties on the Customer side

element DocumentType/Header/DeliveryInfo

diagram
type	abans:DeliveryInfoType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:DeliveryDate abans:ConfirmedDate abans:DesiredDate abans:AgreedShippingID abans:ShippingText abans:TrackID abans:PartialDelivery abans:NumberOfLogisticalUnits
annotation	documentation Information about devliery

element DocumentType/Header/Agent

diagram
type	abans:AgentType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Name abans:Rate abans:Amount abans:AgreedID
annotation	documentation One or more agent information

element DocumentType/Header/Text

diagram
type	extension of abans:TextType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         type   abans:TextTypeEnum   optional         agreedType   xs:string   optional
annotation	documentation Texts, descrpitions etc.

attribute DocumentType/Header/Text/@type

type	abans:TextTypeEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  AGREEDTYPE enumeration  COMMENT enumeration  DOCUMENT enumeration  TITLE

attribute DocumentType/Header/Text/@agreedType

type	xs:string
properties	use  optional

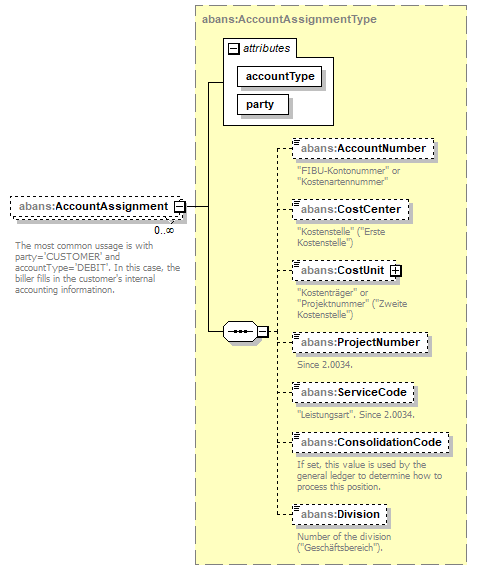

element DocumentType/Header/AccountAssignment

diagram
type	abans:AccountAssignmentType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:AccountNumber abans:CostCenter abans:CostUnit abans:ProjectNumber abans:ServiceCode abans:ConsolidationCode abans:Division
attributes	Name   Type   Use   Default   Fixed   Annotation accountType   abans:AccountEnum   required         party   abans:PartyReferenceType   required
annotation	documentation The most common ussage is with party='CUSTOMER' and accountType='DEBIT'. In this case, the biller fills in the customer's internal accounting informatinon.

element DocumentType/Header/MiscData

diagram
type	abans:MiscDataType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Taxfree abans:PersonInCharge abans:AgreedIDOfPersonInCharge abans:IsVisaOK abans:AgreedCode abans:AgreedFixedPriceID abans:ContractID abans:ObjectID
attributes	Name   Type   Use   Default   Fixed   Annotation party   abans:PartyReferenceType
annotation	documentation Misc data, grouped together in order to prevent the header itself to become too big. This element exists both in the header and in the line item.

element DocumentType/Header/MiscDataHeader

diagram
type	abans:MiscDataHeaderType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:AgreedDocumentCategory abans:AgreedDocumentStatus abans:DocumentComment abans:AgreedPaymentNumber abans:FreeDocumentGroupData abans:ValueDate abans:SubsidiaryDate abans:DispositionDate abans:BusinessCaseNumber abans:CostGroup abans:PaymentCause abans:PaperCopyIsTransmitted abans:AgreedTaxType abans:AgreedTaxCode abans:PeriodOfService abans:Weight abans:PrintDate
attributes	Name   Type   Use   Default   Fixed   Annotation party   abans:PartyReferenceType
annotation	documentation Misc data, grouped together in order to prevent the header itself to become too big.

element DocumentType/Header/AgreedExtendedTableData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for Extended Tables in ABACUS

element DocumentType/Header/AgreedUserFieldData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for IBF (Individual User Fields) in ABACUS

element DocumentType/Header/AgreedFreeFieldData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for free fields in ABACUS

element DocumentType/Header/AgreedVariableData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for user defined shop variables

element DocumentType/Header/AgreedData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for B2B mutually agreed data exchange

element DocumentType/LineItem

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:ProductID abans:Quantity abans:UnitInfo abans:Price abans:AllowanceAndCharge abans:Tax abans:Amount abans:Reference abans:DeliveryAddress abans:AgreedAddress abans:DeliveryInfo abans:DeliverySchedules abans:Stock abans:BatchOrLotOrSerialNumber abans:LogisticInformation abans:Agent abans:Text abans:AccountAssignment abans:UnitRelations abans:MiscData abans:MiscDataLineItem abans:AgreedExtendedTableData abans:AgreedUserFieldData abans:AgreedFreeFieldData abans:AgreedVariableData abans:AgreedData
attributes	Name   Type   Use   Default   Fixed   Annotation lineItemID   xs:string   optional         lineItemSubID   xs:string   optional         lineItemSubID2   xs:string   optional         type   abans:LineItemTypeEnum   optional         documentation PAYMENTONACCOUNT is available since 2.0034
annotation	documentation May contain more or less fully qualified items, but can also consist of Text only

attribute DocumentType/LineItem/@lineItemID

type	xs:string
properties	use  optional

attribute DocumentType/LineItem/@lineItemSubID

type	xs:string
properties	use  optional

attribute DocumentType/LineItem/@lineItemSubID2

type	xs:string
properties	use  optional

attribute DocumentType/LineItem/@type

type	abans:LineItemTypeEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  REGULAR enumeration  ALLOWANCEORCHARGE enumeration  SHIPPINGANDHANDLING enumeration  ROUNDINGDIFFERENCE enumeration  MINMUMINVOICEVALUESURCHARGE enumeration  PAYMENTONACCOUNT
annotation	documentation PAYMENTONACCOUNT is available since 2.0034

element DocumentType/LineItem/ProductID

diagram
type	extension of xs:string
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation party   abans:PartyEnum   required         type   abans:ProductTypeEnum   required
annotation	documentation Multiple product ID's. How are the productID values used when transferred to the ABACUS Order Processing: Transfer to CRM (PurchaseOrder, OfferRequest) The product identification according to AbaDoc values is as follows: 1. Product ID Vendor 2. Product ID Common 3. Product ID Unknown 4. EAN Vendor 5. EAN Common 6. EAN Unknown 7. EAN Customer 8. Customer Userkey Customer     a) ProductID (INTERNALID)     b) Product EAN (EAN) 9. Customer Userkey Common     a) ProductID (INTERNALID)     b) Product EAN (EAN) 10. Customer Userkey Unknown     a) ProductID (INTERNALID)     b) Product EAN (EAN) 11. Userkeygroup Customer     a) ProductID (INTERNALID)     b) Product EAN (EAN) 12. Userkeygroup Common     a) ProductID (INTERNALID)     b) Product EAN (EAN) 13. Userkeygroup Unknown     a) ProductID (INTERNALID)     b) Product EAN (EAN) 14. Product short ID Vendor 15. Product short ID Common 16. Product short ID Unknown 17. Product technical ID Vendor 18. Product technical ID Common 19. Product technical ID Unknown Transfer to SCM (Offer, OrderConfirmation, DeliveryNote, Bill) The product identification according to AbaDoc values is as follows: 1. Product ID Customer 2. Product ID Vendor 3. Product ID Common 4. Product ID Unknown 5. EAN Customer 7. EAN Vendor (supplier definition) 6. EAN Vendor 8. EAN Common 9. EAN Common (supplier definition) 10. EAN Unknown 11. EAN Unknown (supplier definition) 12. Product short ID Customer 13. Product short ID Common 14. Product short ID Unknown 15. Product technical ID Customer 16. Product technical ID Common 17. Product technical ID Unknown A value has to have a unique match in order to be used.

attribute DocumentType/LineItem/ProductID/@party

type	abans:PartyEnum
properties	use  required
facets	Kind  Value  Annotation enumeration  VENDOR enumeration  CUSTOMER enumeration  COMMON enumeration  AGREED enumeration  UNKNOWN

attribute DocumentType/LineItem/ProductID/@type

type	abans:ProductTypeEnum
properties	use  required
facets	Kind  Value  Annotation enumeration  EAN enumeration  UPC enumeration  GTIN enumeration  UNSPSC enumeration  INTERNALNUMBER enumeration  INTERNALID enumeration  INTERNALDESCRIPTION enumeration  INTERNALVARIANTID enumeration  INTERNALUSERKEYNUMBER enumeration  INTERNALUSERKEYID enumeration  INTERNALUSERKEYDESCRIPTION enumeration  INTERNALTECHNICALID enumeration  INTERNALSHORTID enumeration  INTERNALTYPE enumeration  AGREEDID enumeration  UNKNOWN enumeration  UPIX

element DocumentType/LineItem/Quantity

diagram
type	extension of abans:QuantityType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation type   abans:QuantityTypeEnum   required         documentation 'DELIVERYREQUEST' is deprecated, don't use it. agreedType   xs:string   optional         unit   abans:UnitType   optional         agreedUnit   xs:string   optional         unitFactor   xs:decimal   optional   1
annotation	documentation Multiple quantities. Please note the required "type" attribute. If the "unit" attribute is used, it must contain a valid "UNECE Recommendation 20" Common code. For "type", use "ORDERED" for PurchaseOrders and OfferRequests, OFFERED for offers, CONFIRMED for OrderConfirmations, DELIVERED for DeliveryNotes, INVOICED for Bills. Example: In a bill, you can also specify ORDERED, CONFIRMED, DELIVERED and OUTSTANDING. The same is true for other document types accordingly.

element DocumentType/LineItem/UnitInfo

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Width abans:Depth abans:Height abans:Diameter abans:GrossWeight abans:NetWeight abans:Density
attributes	Name   Type   Use   Default   Fixed   Annotation unit   abans:UnitType   optional         agreedUnit   xs:string   optional         unitFactor   xs:decimal   optional   1

attribute DocumentType/LineItem/UnitInfo/@unit

type	abans:UnitType
properties	use  optional

attribute DocumentType/LineItem/UnitInfo/@agreedUnit

type	xs:string
properties	use  optional

attribute DocumentType/LineItem/UnitInfo/@unitFactor

type	xs:decimal
properties	use  optional default  1

element DocumentType/LineItem/UnitInfo/Width

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/Depth

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/Height

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/Diameter

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/GrossWeight

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms

element DocumentType/LineItem/UnitInfo/NetWeight

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms

element DocumentType/LineItem/UnitInfo/Density

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms per cubic meter

element DocumentType/LineItem/Price

diagram
type	extension of abans:PriceType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   abans:CurrencyType   required         unit   abans:UnitType   optional         agreedUnit   xs:string   optional         inclusiveTax   xs:boolean   required         allowanceAndCharge   abans:AllowanceAndChargeEnum   required         agreedID   xs:string   optional         agreedPriceNumber   xs:string   optional         agreedIsPFPrice   xs:boolean   optional         priceTag   abans:PriceTagEnum   optional         priceTagVisible   xs:boolean   optional
annotation	documentation Multiple prices. If the "unit" attribute is used, it must contain a valid "UNECE Recommendation 20" Common code.

attribute DocumentType/LineItem/Price/@inclusiveTax

type	xs:boolean
properties	use  required

attribute DocumentType/LineItem/Price/@allowanceAndCharge

type	abans:AllowanceAndChargeEnum
properties	use  required
facets	Kind  Value  Annotation enumeration  BEFORE enumeration  AFTER enumeration  UNKNOWN

attribute DocumentType/LineItem/Price/@agreedID

type	xs:string
properties	use  optional

attribute DocumentType/LineItem/Price/@agreedPriceNumber

type	xs:string
properties	use  optional

attribute DocumentType/LineItem/Price/@agreedIsPFPrice

type	xs:boolean
properties	use  optional

attribute DocumentType/LineItem/Price/@priceTag

type	abans:PriceTagEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  NONE enumeration  REGULAR enumeration  SPECIALOFFER

attribute DocumentType/LineItem/Price/@priceTagVisible

type	xs:boolean
properties	use  optional

element DocumentType/LineItem/AllowanceAndCharge

diagram
type	abans:AllowanceAndChargeType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:Total
annotation	documentation Used only for line item allowances or charges. For document level allowances or charges, see MiscDataLineItem. The values inside this element refer to the price, not the amount (makes a difference if the quantity is not equal to 1).

element DocumentType/LineItem/Tax

diagram
type	abans:TaxType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:TotalBaseAmount abans:TotalAmount
annotation	documentation Line item tax information, includes everything from this line item. Important: All allowance and charges are also included.

element DocumentType/LineItem/Amount

diagram
type	extension of abans:AmountType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   derived by: abans:CurrencyType   required         inclusiveTax   xs:boolean   required         allowanceAndCharge   abans:AllowanceAndChargeEnum   required
annotation	documentation Line item total amount. There can be multiple Amount elements, but for bills for example there should be one with inclusiveTax="true" and allowanceAndCharge="AFTER". If there is a tax element, there should be an Amount element with inclusiveTax="false" and allowanceAndCharge="AFTER" which is then the same value as Tax/Detail/BaseAmount.

attribute DocumentType/LineItem/Amount/@inclusiveTax

type	xs:boolean
properties	use  required

attribute DocumentType/LineItem/Amount/@allowanceAndCharge

type	abans:AllowanceAndChargeEnum
properties	use  required
facets	Kind  Value  Annotation enumeration  BEFORE enumeration  AFTER enumeration  UNKNOWN

element DocumentType/LineItem/Reference

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:DocumentReference abans:AgreedReference
annotation	documentation All kind of references.

element DocumentType/LineItem/Reference/DocumentReference

diagram
type	extension of abans:DocumentReferenceType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:OfferRequest abans:Offer abans:PurchaseOrder abans:OrderConfirmation abans:DeliveryNote abans:Bill abans:Reminder abans:AbstractOrder
attributes	Name   Type   Use   Default   Fixed   Annotation party   abans:PartyReferenceType   required
annotation	documentation References to the documents of the supplier

attribute DocumentType/LineItem/Reference/DocumentReference/@party

type	abans:PartyReferenceType
properties	use  required
facets	Kind  Value  Annotation enumeration  CUSTOMER enumeration  VENDOR

element DocumentType/LineItem/Reference/AgreedReference

diagram
type	abans:IDAndDateType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Mutually agreed reference

element DocumentType/LineItem/DeliveryAddress

diagram
type	abans:PartyType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Delivery address, if different between the line items.

element DocumentType/LineItem/AgreedAddress

diagram
type	abans:AgreedAddressType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Address
annotation	documentation Info about different possible parties on the Customer side

element DocumentType/LineItem/DeliveryInfo

diagram
type	abans:DeliveryInfoType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:DeliveryDate abans:ConfirmedDate abans:DesiredDate abans:AgreedShippingID abans:ShippingText abans:TrackID abans:PartialDelivery abans:NumberOfLogisticalUnits
annotation	documentation Delivery info, if different between the line items.

element DocumentType/LineItem/DeliverySchedules

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:DeliverySchedule

element DocumentType/LineItem/DeliverySchedules/DeliverySchedule

diagram
properties	content  complex
children	abans:Status abans:Quantity abans:PointInTime

element DocumentType/LineItem/DeliverySchedules/DeliverySchedule/Status

diagram
type	restriction of xs:string
properties	content  simple
facets	Kind  Value  Annotation enumeration  DESIRED enumeration  EXPECTED enumeration  CONFIRMED enumeration  UNDELIVERABLE

element DocumentType/LineItem/DeliverySchedules/DeliverySchedule/Quantity

diagram
type	xs:decimal
properties	content  simple

element DocumentType/LineItem/DeliverySchedules/DeliverySchedule/PointInTime

diagram
type	abans:DateOrDateTimeType
properties	minOcc  0 maxOcc  1 content  simple

element DocumentType/LineItem/Stock

diagram
properties	minOcc  0 maxOcc  2 content  complex
children	abans:StockLocation abans:BinLocation abans:BatchOrLotOrSerialNumber
attributes	Name   Type   Use   Default   Fixed   Annotation incoming   xs:boolean   optional   false
annotation	documentation Use only for AbstractOrder

attribute DocumentType/LineItem/Stock/@incoming

type	xs:boolean
properties	use  optional default  false

element DocumentType/LineItem/Stock/StockLocation

diagram
type	xs:string
properties	content  simple

element DocumentType/LineItem/Stock/BinLocation

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

element DocumentType/LineItem/Stock/BatchOrLotOrSerialNumber

diagram
type	abans:BatchOrLotOrSerialNumberType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BatchOrLotOrSerialNumberData
attributes	Name   Type   Use   Default   Fixed   Annotation type   abans:BatchOrLotOrSerialNumberEnum   required

element DocumentType/LineItem/BatchOrLotOrSerialNumber

diagram
type	abans:BatchOrLotOrSerialNumberType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:BatchOrLotOrSerialNumberData
attributes	Name   Type   Use   Default   Fixed   Annotation type   abans:BatchOrLotOrSerialNumberEnum   required

element DocumentType/LineItem/LogisticInformation

diagram
type	abans:LogisticInformationType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:LogisticUnits
annotation	documentation Transport information, e.g. SSCC. This element must only be used if there is no BatchOrLotOrVintage information available.

element DocumentType/LineItem/Agent

diagram
type	abans:AgentType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Name abans:Rate abans:Amount abans:AgreedID

element DocumentType/LineItem/Text

diagram
type	extension of abans:TextType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         type   abans:TextEnum   optional         subType   xs:string   optional         agreedType   xs:string   optional
annotation	documentation Attribute "type" contains "ItemText" by default

attribute DocumentType/LineItem/Text/@type

type	abans:TextEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  ITEMTEXT enumeration  DESCRIPTION enumeration  VARIANTDESCRIPTION enumeration  ADDITIONALDESCRIPTION

attribute DocumentType/LineItem/Text/@subType

type	xs:string
properties	use  optional

attribute DocumentType/LineItem/Text/@agreedType

type	xs:string
properties	use  optional

element DocumentType/LineItem/AccountAssignment

diagram
type	abans:AccountAssignmentType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:AccountNumber abans:CostCenter abans:CostUnit abans:ProjectNumber abans:ServiceCode abans:ConsolidationCode abans:Division
attributes	Name   Type   Use   Default   Fixed   Annotation accountType   abans:AccountEnum   required         party   abans:PartyReferenceType   required
annotation	documentation Different account assignments. Use the required "party" attribute to specify which party this information is relevant for. Typically, in a PurchaseOrder, and OrderConfirmation, a DeliveryNote and in a Bill, the DEBIT value is needed if the party=="CUSTOMER" account is referred to.

element DocumentType/LineItem/UnitRelations

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:BaseUnit abans:Factor abans:Unit
annotation	documentation Relations between units, eg. BaseUnit=MMT (millimeters), Factor=0.001, Unit=MTR (meters)

element DocumentType/LineItem/UnitRelations/BaseUnit

diagram
type	extension of abans:UnitType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation unitType   abans:UnitTypeEnum   optional         agreedUnit   xs:string   optional

attribute DocumentType/LineItem/UnitRelations/BaseUnit/@unitType

type	abans:UnitTypeEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  PURCHASE enumeration  PACKAGING enumeration  PRICE enumeration  SALES enumeration  STOCK enumeration  BASE

attribute DocumentType/LineItem/UnitRelations/BaseUnit/@agreedUnit

type	xs:string
properties	use  optional

element DocumentType/LineItem/UnitRelations/Factor

diagram
type	xs:decimal
properties	content  simple

element DocumentType/LineItem/UnitRelations/Unit

diagram
type	extension of abans:UnitType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation unitType   abans:UnitTypeEnum   optional         agreedUnit   xs:string   optional

attribute DocumentType/LineItem/UnitRelations/Unit/@unitType

type	abans:UnitTypeEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  PURCHASE enumeration  PACKAGING enumeration  PRICE enumeration  SALES enumeration  STOCK enumeration  BASE

attribute DocumentType/LineItem/UnitRelations/Unit/@agreedUnit

type	xs:string
properties	use  optional

element DocumentType/LineItem/MiscData

diagram
type	abans:MiscDataType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Taxfree abans:PersonInCharge abans:AgreedIDOfPersonInCharge abans:IsVisaOK abans:AgreedCode abans:AgreedFixedPriceID abans:ContractID abans:ObjectID
attributes	Name   Type   Use   Default   Fixed   Annotation party   abans:PartyReferenceType
annotation	documentation Some additional information used both in the header and on each line item.

element DocumentType/LineItem/MiscDataLineItem

diagram
type	abans:MiscDataLineItemType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:AllowanceOrCharge abans:ForInformationOnly abans:IgnoredForDocumentDiscount abans:Project abans:Inventory abans:ValueDate abans:PeriodOfService
attributes	Name   Type   Use   Default   Fixed   Annotation party   abans:PartyReferenceType
annotation	documentation Misc data, grouped together in order to prevent the line item itself to become too big.

element DocumentType/LineItem/AgreedExtendedTableData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for Extended Tables in ABACUS

element DocumentType/LineItem/AgreedUserFieldData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for IBF (Individual User Fields) in ABACUS

element DocumentType/LineItem/AgreedFreeFieldData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for free fields in ABACUS

element DocumentType/LineItem/AgreedVariableData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for user defined shop variables

element DocumentType/LineItem/AgreedData

diagram
type	abans:DataType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for B2B mutually agreed data exchange

element DocumentType/Summary

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:DocumentCurrency abans:BaseCurrency abans:ExchangeRate abans:Tax abans:TotalAmount abans:TotalAmountExclusiveTax abans:TotalAmountPaid abans:TotalAmountDue abans:SettledSeparately abans:PaymentTerms abans:PaymentMethod abans:Text
annotation	documentation All document level financial data, payment Terms etc., information that is usually contained in the footer of (for example) a bill.

element DocumentType/Summary/DocumentCurrency

diagram
type	extension of abans:CurrencyType
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation pattern  \p{Lu}\p{Lu}\p{Lu}
annotation	documentation The Currency specified here is considered the main currency of this document. swissDIGIN: K-01-04

element DocumentType/Summary/BaseCurrency

diagram
type	abans:CurrencyType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation pattern  \p{Lu}\p{Lu}\p{Lu}
annotation	documentation "Leitwährung"

element DocumentType/Summary/ExchangeRate

diagram
type	abans:RateType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation category   abans:RateEnum   optional         documentation S=Standard M=Mixed E=Excempt
annotation	documentation MUST be calculated with base 1. Example: DocumentCurrency="USD", BaseCurrency="CHF", Exchange Rate is 1.35, meaning 1 USD = 1.35 CHF.

element DocumentType/Summary/Tax

diagram
type	abans:TaxType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:TotalBaseAmount abans:TotalAmount
annotation	documentation Document level tax information, including everything.

element DocumentType/Summary/TotalAmount

diagram
type	extension of abans:AmountType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   derived by: abans:CurrencyType   required
annotation	documentation Grand Total, incl. Tax if applicable. If TotalAmountPaid and TotalAmountDue is present as well, then DUE must be Total minus PAID, for any given currency.

element DocumentType/Summary/TotalAmountExclusiveTax

diagram
type	extension of abans:AmountType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   derived by: abans:CurrencyType   required
annotation	documentation Since 2.0037

element DocumentType/Summary/TotalAmountPaid

diagram
type	abans:AmountType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   derived by: abans:CurrencyType   required
annotation	documentation Total amount paid, incl. Tax if applicable.

element DocumentType/Summary/TotalAmountDue

diagram
type	abans:AmountType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   derived by: abans:CurrencyType   required
annotation	documentation Total amount due, incl. Tax if applicable.

element DocumentType/Summary/SettledSeparately

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If the amount due is already paid or will be paid for separately (e.g. LSV+), set this element to true. Do not set it to true if a prepayment is equal or bigger than the TotalAmount. For bills with a TotalAmount of 0.00, do *not* set this flag. For bills which are not due for payment because the amount is too small, do set this flag.

element DocumentType/Summary/PaymentTerms

diagram
type	abans:PaymentTermsType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:MinimumAmount abans:NetPeriod abans:Discount abans:PenaltyPercentage abans:AgreedPaymentTermID abans:Text
annotation	documentation Given or offered terms for the payment.

element DocumentType/Summary/PaymentMethod

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:CreditCard abans:DesiredPaymentMethod abans:Percentage abans:Amount abans:DesiredCurrency abans:AgreedPaymentMethod
annotation	documentation One or more PaymentMethods.

element DocumentType/Summary/PaymentMethod/CreditCard

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	abans:CardID abans:AgreedCardID abans:Description abans:CardNumber abans:ExpirationMonth abans:ExpirationYear abans:NameOnCard abans:AdditionalCode abans:TransactionID abans:AuthorizationCode
annotation	documentation Card information.

element DocumentType/Summary/PaymentMethod/CreditCard/CardID

diagram
type	abans:CardIDEnum
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  MASTERCARD enumeration  AMERICANEXPRESS enumeration  VISA enumeration  JCB enumeration  DINERS enumeration  DISCOVER enumeration  POSTCARD enumeration  AGREED

element DocumentType/Summary/PaymentMethod/CreditCard/AgreedCardID

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutully agreed card id.

element DocumentType/Summary/PaymentMethod/CreditCard/Description

diagram
type	abans:StringWithLanguageType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional

element DocumentType/Summary/PaymentMethod/CreditCard/CardNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

element DocumentType/Summary/PaymentMethod/CreditCard/ExpirationMonth

diagram
type	restriction of xs:int
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  12

element DocumentType/Summary/PaymentMethod/CreditCard/ExpirationYear

diagram
type	restriction of xs:int
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  2000 maxInclusive  2999

element DocumentType/Summary/PaymentMethod/CreditCard/NameOnCard

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

element DocumentType/Summary/PaymentMethod/CreditCard/AdditionalCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation CVV for example

element DocumentType/Summary/PaymentMethod/CreditCard/TransactionID

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Card transaction ID

element DocumentType/Summary/PaymentMethod/CreditCard/AuthorizationCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Authorization code for online cards

element DocumentType/Summary/PaymentMethod/DesiredPaymentMethod

diagram
type	abans:DesiredPaymentMethodEnum
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  CREDITCARD enumeration  BILL enumeration  CASHONDELIVERY enumeration  ADVANCEPAYMENT
annotation	documentation Usually used only for OfferRequests and PurchaseOrders.

element DocumentType/Summary/PaymentMethod/Percentage

diagram
type	abans:PercentageType
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If multiple PaymentMethods are specified, they must be divided using this Percentage element.

element DocumentType/Summary/PaymentMethod/Amount

diagram
type	abans:AmountType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   derived by: abans:CurrencyType   required
annotation	documentation Total amount of this PaymentMethod.

element DocumentType/Summary/PaymentMethod/DesiredCurrency

diagram
type	abans:CurrencyType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation pattern  \p{Lu}\p{Lu}\p{Lu}
annotation	documentation Usually used only for OfferRequests and PurchaseOrders.

element DocumentType/Summary/PaymentMethod/AgreedPaymentMethod

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutully agreed payment method.

element DocumentType/Summary/Text

diagram
type	extension of abans:TextType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional         type   abans:SummaryTextTypeEnum   optional         agreedType   xs:string   optional
annotation	documentation Text of Summery. For each language, this element is repeated. If multiple Text elements are present, then the text should contain the same information.

attribute DocumentType/Summary/Text/@type

type	abans:SummaryTextTypeEnum
properties	use  optional
facets	Kind  Value  Annotation enumeration  AGREEDTYPE enumeration  DOCUMENT

attribute DocumentType/Summary/Text/@agreedType

type	xs:string
properties	use  optional

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
