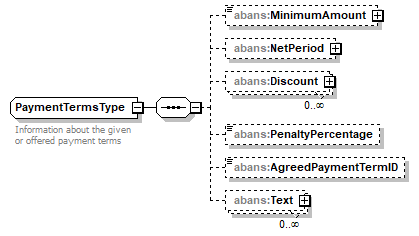

complexType PaymentTermsType

diagram
children	abans:MinimumAmount abans:NetPeriod abans:Discount abans:PenaltyPercentage abans:AgreedPaymentTermID abans:Text
used by	elements  DocumentType/Summary/PaymentTerms SupplierType/PaymentTerms
annotation	documentation Information about the given or offered payment terms

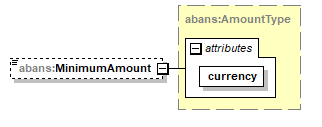

element PaymentTermsType/MinimumAmount

diagram
type	abans:AmountType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation currency   derived by: abans:CurrencyType   required

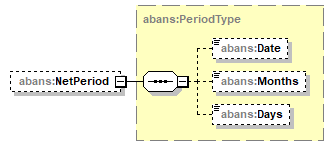

element PaymentTermsType/NetPeriod

diagram
type	abans:PeriodType
properties	minOcc  0 maxOcc  1 content  complex
children	abans:Date abans:Months abans:Days

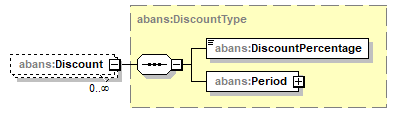

element PaymentTermsType/Discount

diagram
type	abans:DiscountType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:DiscountPercentage abans:Period

element PaymentTermsType/PenaltyPercentage

diagram
type	abans:PercentageType
properties	minOcc  0 maxOcc  1 content  simple

element PaymentTermsType/AgreedPaymentTermID

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple

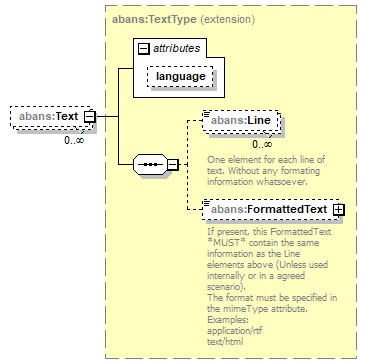

element PaymentTermsType/Text

diagram
type	extension of abans:TextType
properties	minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   Annotation language   abans:LanguageType   optional
