Schema AbaDoc-2.0034.xsd


element AbaDoc

diagram
properties	content  complex
children	abans:Package abans:OfferRequest abans:Offer abans:PurchaseOrder abans:OrderConfirmation abans:DeliveryNote abans:Bill abans:CreditAdvice abans:AbstractOrder abans:Agreed abans:OnlineCustomer abans:Address abans:Supplier
attributes	Name   Type   Use   Default   Fixed   annotation version xs:decimal required         isDuplicate xs:boolean optional   false      documentation Deprecated: Use isDuplicate on DocumentType isTest xs:boolean optional   false      documentation Deprecated: Use isTest on DocumentType applID xs:string optional         applVersionMajor xs:string optional         applVersionMinor xs:string optional         applBuildNumber xs:string optional

attribute AbaDoc/@version

type	xs:decimal
properties	isRef  0 use  required

attribute AbaDoc/@isDuplicate

type	xs:boolean
properties	isRef  0 default  false use  optional
annotation	documentation Deprecated: Use isDuplicate on DocumentType

attribute AbaDoc/@isTest

type	xs:boolean
properties	isRef  0 default  false use  optional
annotation	documentation Deprecated: Use isTest on DocumentType

attribute AbaDoc/@applID

type	xs:string
properties	isRef  0 use  optional

attribute AbaDoc/@applVersionMajor

type	xs:string
properties	isRef  0 use  optional

attribute AbaDoc/@applVersionMinor

type	xs:string
properties	isRef  0 use  optional

attribute AbaDoc/@applBuildNumber

type	xs:string
properties	isRef  0 use  optional

element AbaDoc/Package

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:InterchangeSender abans:InterchangeReceiver
annotation	documentation Contains information about the document such as sender and receiver ids, and status info.

element AbaDoc/Package/InterchangeSender

diagram
properties	isRef  0 content  complex
children	abans:PartyID
annotation	documentation Information about the sender of this document. Use the "Id" of the "ReceiverId" element if you want to send a message back to the sender

element AbaDoc/Package/InterchangeSender/PartyID

diagram
type	abans:PartyIDType
properties	isRef  0 content  complex
children	abans:SenderID abans:ReceiverID abans:EAN abans:DUNS abans:GLN abans:InternalIDByOtherParty abans:AgreedID
annotation	documentation Electronic ID's of the sender. Depending on the used network, the sender and the receiver ID of the same company might not be the same. Use this ParticipantReceiverID to answer.

element AbaDoc/Package/InterchangeReceiver

diagram
properties	isRef  0 content  complex
children	abans:PartyID
annotation	documentation Information about the receiver of this document

element AbaDoc/Package/InterchangeReceiver/PartyID

diagram
type	abans:PartyIDType
properties	isRef  0 content  complex
children	abans:SenderID abans:ReceiverID abans:EAN abans:DUNS abans:GLN abans:InternalIDByOtherParty abans:AgreedID
annotation	documentation Electronic ID's of the receiver. Depending on the used network, the sender and the receiver ID of the same company might not be the same.

element AbaDoc/OfferRequest

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

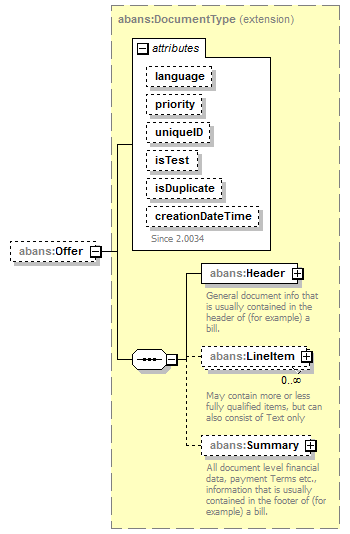

element AbaDoc/Offer

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/PurchaseOrder

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/OrderConfirmation

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/DeliveryNote

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/Bill

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/CreditAdvice

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/AbstractOrder

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/Agreed

diagram
type	extension of abans:DocumentType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Header abans:LineItem abans:Summary
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034 agreedType xs:string required
annotation	documentation Known agreedTypes: ReturnAdvice, AddressChange, Message, StatusUpdate

attribute AbaDoc/Agreed/@agreedType

type	xs:string
properties	isRef  0 use  required

element AbaDoc/OnlineCustomer

diagram
type	extension of abans:OnlineCustomerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:NameAddress abans:DeliveryNameAddress abans:AccountID abans:DefaultCurrency abans:TransactionDateTime abans:EBusinessParticipant abans:AgreedData
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/Address

diagram
type	extension of abans:NameAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034

element AbaDoc/Supplier

diagram
type	extension of abans:SupplierType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:NameAddress abans:PartyID abans:PaymentTerms
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034
annotation	documentation "Kreditor"

complexType AccountAssignmentType

diagram
children	abans:AccountNumber abans:CostCenter abans:CostUnit abans:ProjectNumber abans:ServiceCode abans:ConsolidationCode abans:Division
used by	elements  DocumentType/Header/AccountAssignment DocumentType/LineItem/AccountAssignment
attributes	Name   Type   Use   Default   Fixed   annotation accountType abans:AccountEnum required         party abans:PartyReferenceType required
annotation	documentation Grouped information about accounting.

attribute AccountAssignmentType/@accountType

type	abans:AccountEnum
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  DEBIT  enumeration  CREDIT

attribute AccountAssignmentType/@party

type	abans:PartyReferenceType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  CUSTOMER  enumeration  VENDOR

element AccountAssignmentType/AccountNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "FIBU-Kontonummer" or "Kostenartennummer"

element AccountAssignmentType/CostCenter

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Kostenstelle" ("Erste Kostenstelle")

element AccountAssignmentType/CostUnit

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation costUnitType abans:CostUnitEnum          documentation Optional since 2.0034. If omitted, "COSTUNIT" is meant.
annotation	documentation "Kostenträger" or "Projektnummer" ("Zweite Kostenstelle")

attribute AccountAssignmentType/CostUnit/@costUnitType

type	abans:CostUnitEnum
properties	isRef  0
facets	Kind  Value  annotation  enumeration  COSTUNIT  enumeration  PROJECTNUMBER  enumeration  UNKNOWN
annotation	documentation Optional since 2.0034. If omitted, "COSTUNIT" is meant.

element AccountAssignmentType/ProjectNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Since 2.0034.

element AccountAssignmentType/ServiceCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Leistungsart". Since 2.0034.

element AccountAssignmentType/ConsolidationCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If set, this value is used by the general ledger to determine how to process this position.

element AccountAssignmentType/Division

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Number of the division ("Geschäftsbereich").

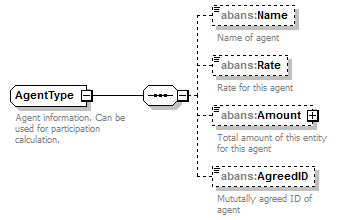

complexType AgentType

diagram
children	abans:Name abans:Rate abans:Amount abans:AgreedID
used by	elements  DocumentType/Header/Agent DocumentType/LineItem/Agent
annotation	documentation Agent information. Can be used for participation calculation.

element AgentType/Name

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Name of agent

element AgentType/Rate

diagram
type	abans:PercentageType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Rate for this agent

element AgentType/Amount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Total amount of this entity for this agent

element AgentType/AgreedID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Mututally agreed ID of agent

complexType AgreedAddressType

diagram
children	abans:Address
used by	elements  DocumentType/Header/AgreedAddress DocumentType/LineItem/AgreedAddress

element AgreedAddressType/Address

diagram
type	extension of abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
attributes	Name   Type   Use   Default   Fixed   annotation agreedID xs:string required
annotation	documentation Customer information

attribute AgreedAddressType/Address/@agreedID

type	xs:string
properties	isRef  0 use  required

complexType AllowanceAndChargeType

diagram
children	abans:Detail abans:Total
used by	element  DocumentType/LineItem/AllowanceAndCharge
annotation	documentation Information about an allowance (for example, a Discount) or a charge (e.g. Shipping and handling costs)

element AllowanceAndChargeType/Detail

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:BaseAmount abans:Rate abans:Amount abans:Tax abans:UseSubTotalForNextDetail abans:AgreedCode abans:Description
annotation	documentation Detailed specification of an allowance or charge. If present, the sum of the Amount values must match the appropriate elements in Total

element AllowanceAndChargeType/Detail/BaseAmount

diagram
type	extension of abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required         inclusiveTax xs:boolean optional   false
annotation	documentation Basis for allowance or charge calculation. Usually, this is positive even for allowances. There may be two values present, one incl. and one excl. tax. The must have the same currency.

attribute AllowanceAndChargeType/Detail/BaseAmount/@inclusiveTax

type	xs:boolean
properties	isRef  0 default  false use  optional

element AllowanceAndChargeType/Detail/Rate

diagram
type	abans:RateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation category abans:RateEnum optional         documentation S=Standard M=Mixed E=Excempt
annotation	documentation Percentage of BaseAmount for allowance or charge. In case of allowance, this value is usually negative.

element AllowanceAndChargeType/Detail/Amount

diagram
type	extension of abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required         inclusiveTax xs:boolean optional   false
annotation	documentation Resulting Amount of allowance or charge. In case of allowance, this value is usually negative. There may be two values present, one incl. and one excl. tax. The must have the same currency.

attribute AllowanceAndChargeType/Detail/Amount/@inclusiveTax

type	xs:boolean
properties	isRef  0 default  false use  optional

element AllowanceAndChargeType/Detail/Tax

diagram
type	abans:TaxType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:TotalBaseAmount abans:TotalAmount
annotation	documentation Tax info for this allowance or charge

element AllowanceAndChargeType/Detail/UseSubTotalForNextDetail

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple default  false
annotation	documentation True if the next allowance or charge is to be calculated regarding the Amount of this Detail element.

element AllowanceAndChargeType/Detail/AgreedCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutually Agreed code for allowance or charge

element AllowanceAndChargeType/Detail/Description

diagram
type	abans:StringWithLanguageType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional
annotation	documentation Description of this detail

element AllowanceAndChargeType/Total

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Amount abans:Tax
annotation	documentation Total of all Allowances or Charges

element AllowanceAndChargeType/Total/Amount

diagram
type	extension of abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required         inclusiveTax xs:boolean optional   false

attribute AllowanceAndChargeType/Total/Amount/@inclusiveTax

type	xs:boolean
properties	isRef  0 default  false use  optional

element AllowanceAndChargeType/Total/Tax

diagram
type	abans:TaxType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:TotalBaseAmount abans:TotalAmount

complexType BankIDType

diagram
children	abans:ID abans:BIC abans:NameAddress
used by	elements  BankInfoType/Bank/BankID BankInfoType/Bank/CorrespondentBankID
annotation	documentation Bank information

element BankIDType/ID

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation countryCode abans:CountryCodeType optional
annotation	documentation Country specific bank information. Examples: Switzerland: ClearingNumber Germany: BLZ

attribute BankIDType/ID/@countryCode

type	abans:CountryCodeType
properties	isRef  0 use  optional
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}

element BankIDType/BIC

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Bank identification code. Can be a SWIFT number

element BankIDType/NameAddress

diagram
type	abans:NameAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034
annotation	documentation Address of bank.

complexType BankInfoType

diagram
children	abans:IBAN abans:Bank abans:ESRParticipantID abans:PostalAccount
used by	element  PartyType/BankInfo
attributes	Name   Type   Use   Default   Fixed   annotation currency abans:CurrencyType optional
annotation	documentation Bank info of a Party

attribute BankInfoType/@currency

type	abans:CurrencyType
properties	isRef  0 use  optional
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}

element BankInfoType/IBAN

diagram
type	extension of xs:string
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation bic xs:string optional         nameAndCityOfDestinationBank xs:string optional         nameOfBeneficiary xs:string optional
annotation	documentation One or more IBAN numbers. Temporarily, not all banks are able to process the IBAN as planned. For this time, there are three attributes to provide that information. If multiple IBAN's are given, it's very likely that the first one will be used. This IBAN should be used to pay a bill, if used together with the IPIPurspose.

attribute BankInfoType/IBAN/@bic

type	xs:string
properties	isRef  0 use  optional

attribute BankInfoType/IBAN/@nameAndCityOfDestinationBank

type	xs:string
properties	isRef  0 use  optional

attribute BankInfoType/IBAN/@nameOfBeneficiary

type	xs:string
properties	isRef  0 use  optional

element BankInfoType/Bank

diagram
properties	isRef  0 content  complex
children	abans:AccountNumber abans:NameOfBeneficiary abans:BankID abans:CorrespondentBankID
annotation	documentation One or more bank account numbers and bank IDs

element BankInfoType/Bank/AccountNumber

diagram
type	xs:string
properties	isRef  0 content  simple
annotation	documentation Account number at the bank specified below

element BankInfoType/Bank/NameOfBeneficiary

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element BankInfoType/Bank/BankID

diagram
type	abans:BankIDType
properties	isRef  0 content  complex
children	abans:ID abans:BIC abans:NameAddress

element BankInfoType/Bank/CorrespondentBankID

diagram
type	abans:BankIDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:BIC abans:NameAddress

element BankInfoType/ESRParticipantID

diagram
type	xs:string
properties	isRef  0 content  simple
annotation	documentation Swiss Payment System

element BankInfoType/PostalAccount

diagram
type	xs:string
properties	isRef  0 content  simple
annotation	documentation For example in Switzerland: "Postkonto" number

complexType BatchOrLotOrSerialNumberType

diagram
children	abans:BatchOrLotOrSerialNumberData
used by	elements  DocumentType/LineItem/Stock/BatchOrLotOrSerialNumber DocumentType/LineItem/BatchOrLotOrSerialNumber
attributes	Name   Type   Use   Default   Fixed   annotation type abans:BatchOrLotOrSerialNumberEnum required

attribute BatchOrLotOrSerialNumberType/@type

type	abans:BatchOrLotOrSerialNumberEnum
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  BATCH  enumeration  LOT  enumeration  SERIALNUMBER

element BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:ID abans:Quantity abans:SellBy abans:BestBefore abans:LogisticInformation

element BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/ID

diagram
type	xs:string
properties	isRef  0 content  simple
annotation	documentation Contains the batch, lot or serial number of this (group of) products

element BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/Quantity

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Quantity. If the "type" attribute of the "BatchOrLotOrSerialNumber" element is equals to "SERIALNUMBER", then this element must either be omitted or contain a value of 1. The line item this element refers to must have a "Quantity" element. This quanitiy element here has the same unit as the line item "Quantity" element for which the attribute "type" is equal to "DELIVERED".

element BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/SellBy

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Zu verkaufen bis"

element BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/BestBefore

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Mindesthaltbarkeitsdatum"

element BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/LogisticInformation

diagram
type	abans:LogisticInformationType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:LogisticUnits

complexType DeliveryInfoType

diagram
children	abans:DeliveryDate abans:ConfirmedDate abans:DesiredDate abans:AgreedShippingID abans:ShippingText abans:TrackID abans:PartialDelivery abans:NumberOfLogisticalUnits
used by	elements  DocumentType/Header/DeliveryInfo DocumentType/LineItem/DeliveryInfo
annotation	documentation Information about delivery

element DeliveryInfoType/DeliveryDate

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Actual delivery date. If in Header: swissDIGIN: K-04-01-a/b. If in LineItem: swissDIGIN: P-05-01-a/b.

element DeliveryInfoType/ConfirmedDate

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Confirmed delivery date.

element DeliveryInfoType/DesiredDate

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Desired delivery date.

element DeliveryInfoType/AgreedShippingID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DeliveryInfoType/ShippingText

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DeliveryInfoType/TrackID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	documentation Use multiple elements for different packages

element DeliveryInfoType/PartialDelivery

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Set to true if partial delivery is allowed or wanted. Set to false if partial delivery is not allowed. If this element is not present, it means that it's undefined.

element DeliveryInfoType/NumberOfLogisticalUnits

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Number of seperat locistical units, per lineItem (if in LineItem), or per document (if in Header).

complexType DiscountType

diagram
children	abans:DiscountPercentage abans:Period
used by	element  PaymentTermsType/Discount
annotation	documentation Discount information ("Skonto").

element DiscountType/DiscountPercentage

diagram
type	abans:PercentageType
properties	isRef  0 content  simple

element DiscountType/Period

diagram
type	abans:PeriodType
properties	isRef  0 content  complex
children	abans:Date abans:Months abans:Days

complexType DocumentReferenceType

diagram
children	abans:OfferRequest abans:Offer abans:PurchaseOrder abans:OrderConfirmation abans:DeliveryNote abans:Bill abans:Reminder abans:AbstractOrder
used by	elements  DocumentType/LineItem/Reference/DocumentReference ReferenceType/DocumentReference

element DocumentReferenceType/OfferRequest

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Reference to the offer  request document

element DocumentReferenceType/Offer

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Reference to the offer document

element DocumentReferenceType/PurchaseOrder

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Reference to the purchase order document

element DocumentReferenceType/OrderConfirmation

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Reference to the order confirmation document

element DocumentReferenceType/DeliveryNote

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Reference to the devliery note document

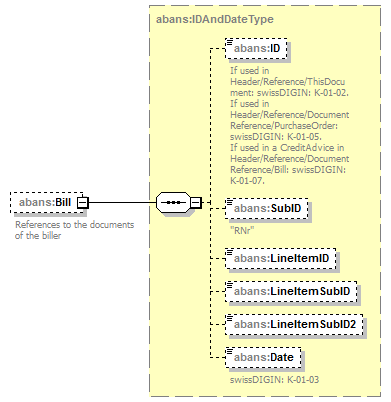

element DocumentReferenceType/Bill

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation References to the documents of the biller

element DocumentReferenceType/Reminder

diagram
type	extension of abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  4 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
attributes	Name   Type   Use   Default   Fixed   annotation counter xs:int required
annotation	documentation Reference to the reminder documents, specified by the counter attribute

attribute DocumentReferenceType/Reminder/@counter

type	xs:int
properties	isRef  0 use  required

element DocumentReferenceType/AbstractOrder

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date

complexType DocumentType

diagram
children	abans:Header abans:LineItem abans:Summary
used by	elements  AbaDoc/AbstractOrder AbaDoc/Agreed AbaDoc/Bill AbaDoc/CreditAdvice AbaDoc/DeliveryNote AbaDoc/Offer AbaDoc/OfferRequest AbaDoc/OrderConfirmation AbaDoc/PurchaseOrder
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         priority abans:PriorityEnum optional         uniqueID xs:string optional         isTest xs:boolean optional   false      isDuplicate xs:boolean optional   false      creationDateTime xs:dateTime          documentation Since 2.0034
annotation	documentation Document. Contains a header, line items and a summary

attribute DocumentType/@language

type	abans:LanguageType
properties	isRef  0 use  optional
facets	Kind  Value  annotation  pattern  \p{Ll}\p{Ll}

attribute DocumentType/@priority

type	abans:PriorityEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  LOW  enumeration  NORMAL  enumeration  HIGH

attribute DocumentType/@uniqueID

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/@isTest

type	xs:boolean
properties	isRef  0 default  false use  optional

attribute DocumentType/@isDuplicate

type	xs:boolean
properties	isRef  0 default  false use  optional

attribute DocumentType/@creationDateTime

type	xs:dateTime
properties	isRef  0
annotation	documentation Since 2.0034

element DocumentType/Header

diagram
properties	isRef  0 content  complex
children	abans:Reference abans:VendorParties abans:CustomerParties abans:AgreedAddress abans:DeliveryInfo abans:Agent abans:Text abans:AccountAssignment abans:MiscData abans:MiscDataHeader abans:AgreedExtendedTableData abans:AgreedUserFieldData abans:AgreedFreeFieldData abans:AgreedVariableData abans:AgreedData
annotation	documentation General document info that is usually contained in the header of (for example) a bill.

element DocumentType/Header/Reference

diagram
type	extension of abans:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ThisDocument abans:OriginalDocument abans:DocumentReference abans:PaymentReference abans:AgreedReference abans:DocumentPresentment
annotation	documentation References to other documents of the same business case and to other information like payment

element DocumentType/Header/VendorParties

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Vendor abans:Biller abans:Supplier abans:Manufacturer
annotation	documentation Info about different possible parties on the Vendor side

element DocumentType/Header/VendorParties/Vendor

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Vendor information

element DocumentType/Header/VendorParties/Biller

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Biller information. Use this tag only of it contains information different from the Vendor. The Issuer Of Invoice is this address, if this element exists. Otherwise, the Issuer Of Invoice is the Vendor Element.

element DocumentType/Header/VendorParties/Supplier

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Supplier information. Use this tag only of it contains information different from the Vendor.

element DocumentType/Header/VendorParties/Manufacturer

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Original manufacturer information. Use this tag only of it contains information different from the Vendor.

element DocumentType/Header/CustomerParties

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Customer abans:DeliveryAddress abans:Payer abans:PurchaseOrderer abans:Consignee
annotation	documentation Info about different possible parties on the Customer side

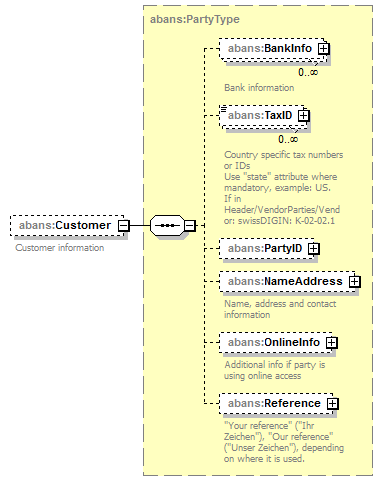

element DocumentType/Header/CustomerParties/Customer

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Customer information

element DocumentType/Header/CustomerParties/DeliveryAddress

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Delivery information. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/CustomerParties/Payer

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Payer information. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/CustomerParties/PurchaseOrderer

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation PurchaseOrderer information. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/CustomerParties/Consignee

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Ultimate Consignee information, for example a local store. Use this tag only of it contains information different from the Customer.

element DocumentType/Header/AgreedAddress

diagram
type	abans:AgreedAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Address
annotation	documentation Info about different possible parties on the Customer side

element DocumentType/Header/DeliveryInfo

diagram
type	abans:DeliveryInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:DeliveryDate abans:ConfirmedDate abans:DesiredDate abans:AgreedShippingID abans:ShippingText abans:TrackID abans:PartialDelivery abans:NumberOfLogisticalUnits
annotation	documentation Information about devliery

element DocumentType/Header/Agent

diagram
type	abans:AgentType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Name abans:Rate abans:Amount abans:AgreedID
annotation	documentation One or more agent information

element DocumentType/Header/Text

diagram
type	extension of abans:TextType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         type abans:TextTypeEnum optional         agreedType xs:string optional
annotation	documentation Texts, descrpitions etc.

attribute DocumentType/Header/Text/@type

type	abans:TextTypeEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  AGREEDTYPE  enumeration  COMMENT  enumeration  DOCUMENT  enumeration  TITLE

attribute DocumentType/Header/Text/@agreedType

type	xs:string
properties	isRef  0 use  optional

element DocumentType/Header/AccountAssignment

diagram
type	abans:AccountAssignmentType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:AccountNumber abans:CostCenter abans:CostUnit abans:ProjectNumber abans:ServiceCode abans:ConsolidationCode abans:Division
attributes	Name   Type   Use   Default   Fixed   annotation accountType abans:AccountEnum required         party abans:PartyReferenceType required
annotation	documentation The most common ussage is with party='CUSTOMER' and accountType='DEBIT'. In this case, the biller fills in the customer's internal accounting informatinon.

element DocumentType/Header/MiscData

diagram
type	abans:MiscDataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Taxfree abans:PersonInCharge abans:AgreedIDOfPersonInCharge abans:IsVisaOK abans:AgreedCode abans:AgreedFixedPriceID abans:ContractID abans:ObjectID
annotation	documentation Misc data, grouped together in order to prevent the header itself to become too big. This element exists both in the header and in the line item.

element DocumentType/Header/MiscDataHeader

diagram
type	abans:MiscDataHeaderType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:AgreedDocumentCategory abans:AgreedDocumentStatus abans:DocumentComment abans:AgreedPaymentNumber abans:FreeDocumentGroupData abans:ValueDate abans:SubsidiaryDate abans:DispositionDate abans:BusinessCaseNumber abans:CostGroup abans:PaymentCause abans:PaperCopyIsTransmitted abans:AgreedTaxType abans:AgreedTaxCode abans:PeriodOfService abans:Weight abans:PrintDate
annotation	documentation Misc data, grouped together in order to prevent the header itself to become too big.

element DocumentType/Header/AgreedExtendedTableData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for Extended Tables in ABACUS

element DocumentType/Header/AgreedUserFieldData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for IBF (Individual User Fields) in ABACUS

element DocumentType/Header/AgreedFreeFieldData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for free fields in ABACUS

element DocumentType/Header/AgreedVariableData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for user defined shop variables

element DocumentType/Header/AgreedData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for B2B mutually agreed data exchange

element DocumentType/LineItem

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:ProductID abans:Quantity abans:UnitInfo abans:Price abans:AllowanceAndCharge abans:Tax abans:Amount abans:Reference abans:DeliveryAddress abans:AgreedAddress abans:DeliveryInfo abans:Stock abans:BatchOrLotOrSerialNumber abans:LogisticInformation abans:Agent abans:Text abans:AccountAssignment abans:UnitRelations abans:MiscData abans:MiscDataLineItem abans:AgreedExtendedTableData abans:AgreedUserFieldData abans:AgreedFreeFieldData abans:AgreedVariableData abans:AgreedData
attributes	Name   Type   Use   Default   Fixed   annotation lineItemID xs:string optional         lineItemSubID xs:string optional         lineItemSubID2 xs:string optional         type abans:LineItemTypeEnum optional         documentation PAYMENTONACCOUNT is available since 2.0034
annotation	documentation May contain more or less fully qualified items, but can also consist of Text only

attribute DocumentType/LineItem/@lineItemID

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/LineItem/@lineItemSubID

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/LineItem/@lineItemSubID2

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/LineItem/@type

type	abans:LineItemTypeEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  REGULAR  enumeration  ALLOWANCEORCHARGE  enumeration  SHIPPINGANDHANDLING  enumeration  ROUNDINGDIFFERENCE  enumeration  MINMUMINVOICEVALUESURCHARGE  enumeration  PAYMENTONACCOUNT
annotation	documentation PAYMENTONACCOUNT is available since 2.0034

element DocumentType/LineItem/ProductID

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation party abans:PartyEnum required         type abans:ProductTypeEnum required
annotation	documentation Multiple product ID's. How are the productID values used when transferred to the ABACUS Order Processing: Transfer to CRM (PurchaseOrder, OfferRequest) The product identification according to AbaDoc values is as follows: 1. Product ID Vendor 2. Product ID Common 3. Product ID Unknown 4. EAN Vendor 5. EAN Common 6. EAN Unknown 7. EAN Customer 8. Customer Userkey Customer     a) ProductID (INTERNALID)     b) Product EAN (EAN) 9. Customer Userkey Common     a) ProductID (INTERNALID)     b) Product EAN (EAN) 10. Customer Userkey Unknown     a) ProductID (INTERNALID)     b) Product EAN (EAN) 11. Userkeygroup Customer     a) ProductID (INTERNALID)     b) Product EAN (EAN) 12. Userkeygroup Common     a) ProductID (INTERNALID)     b) Product EAN (EAN) 13. Userkeygroup Unknown     a) ProductID (INTERNALID)     b) Product EAN (EAN) 14. Product short ID Vendor 15. Product short ID Common 16. Product short ID Unknown 17. Product technical ID Vendor 18. Product technical ID Common 19. Product technical ID Unknown Transfer to SCM (Offer, OrderConfirmation, DeliveryNote, Bill) The product identification according to AbaDoc values is as follows: 1. Product ID Customer 2. Product ID Vendor 3. Product ID Common 4. Product ID Unknown 5. EAN Customer 7. EAN Vendor (supplier definition) 6. EAN Vendor 8. EAN Common 9. EAN Common (supplier definition) 10. EAN Unknown 11. EAN Unknown (supplier definition) 12. Product short ID Customer 13. Product short ID Common 14. Product short ID Unknown 15. Product technical ID Customer 16. Product technical ID Common 17. Product technical ID Unknown A value has to have a unique match in order to be used.

attribute DocumentType/LineItem/ProductID/@party

type	abans:PartyEnum
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  VENDOR  enumeration  CUSTOMER  enumeration  COMMON  enumeration  AGREED  enumeration  UNKNOWN

attribute DocumentType/LineItem/ProductID/@type

type	abans:ProductTypeEnum
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  EAN  enumeration  UPC  enumeration  GTIN  enumeration  UNSPSC  enumeration  INTERNALNUMBER  enumeration  INTERNALID  enumeration  INTERNALDESCRIPTION  enumeration  INTERNALVARIANTID  enumeration  INTERNALUSERKEYNUMBER  enumeration  INTERNALUSERKEYID  enumeration  INTERNALUSERKEYDESCRIPTION  enumeration  INTERNALTECHNICALID  enumeration  INTERNALSHORTID  enumeration  INTERNALTYPE  enumeration  AGREEDID  enumeration  UNKNOWN  enumeration  UPIX

element DocumentType/LineItem/Quantity

diagram
type	extension of abans:QuantityType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type abans:QuantityTypeEnum required         documentation 'DELIVERYREQUEST' is deprecated, don't use it. agreedType xs:string optional         unit abans:UnitType optional         agreedUnit xs:string optional         unitFactor xs:decimal optional   1
annotation	documentation Multiple quantities. Please note the required "type" attribute. If the "unit" attribute is used, it must contain a valid "UNECE Recommendation 20" Common code. For "type", use "ORDERED" for PurchaseOrders and OfferRequests, OFFERED for offers, CONFIRMED for OrderConfirmations, DELIVERED for DeliveryNotes, INVOICED for Bills. Example: In a bill, you can also specify ORDERED, CONFIRMED, DELIVERED and OUTSTANDING. The same is true for other document types accordingly.

element DocumentType/LineItem/UnitInfo

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Width abans:Depth abans:Height abans:Diameter abans:GrossWeight abans:NetWeight abans:Density
attributes	Name   Type   Use   Default   Fixed   annotation unit abans:UnitType optional         agreedUnit xs:string optional         unitFactor xs:decimal optional   1

attribute DocumentType/LineItem/UnitInfo/@unit

type	abans:UnitType
properties	isRef  0 use  optional

attribute DocumentType/LineItem/UnitInfo/@agreedUnit

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/LineItem/UnitInfo/@unitFactor

type	xs:decimal
properties	isRef  0 default  1 use  optional

element DocumentType/LineItem/UnitInfo/Width

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/Depth

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/Height

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/Diameter

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In meters

element DocumentType/LineItem/UnitInfo/GrossWeight

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms

element DocumentType/LineItem/UnitInfo/NetWeight

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms

element DocumentType/LineItem/UnitInfo/Density

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms per cubic meter

element DocumentType/LineItem/Price

diagram
type	extension of abans:PriceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency abans:CurrencyType required         unit abans:UnitType optional         agreedUnit xs:string optional         inclusiveTax xs:boolean required         allowanceAndCharge abans:AllowanceAndChargeEnum required         agreedID xs:string optional         agreedPriceNumber xs:string optional         agreedIsPFPrice xs:boolean optional         priceTag abans:PriceTagEnum optional         priceTagVisible xs:boolean optional
annotation	documentation Multiple prices. If the "unit" attribute is used, it must contain a valid "UNECE Recommendation 20" Common code.

attribute DocumentType/LineItem/Price/@inclusiveTax

type	xs:boolean
properties	isRef  0 use  required

attribute DocumentType/LineItem/Price/@allowanceAndCharge

type	abans:AllowanceAndChargeEnum
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  BEFORE  enumeration  AFTER  enumeration  UNKNOWN

attribute DocumentType/LineItem/Price/@agreedID

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/LineItem/Price/@agreedPriceNumber

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/LineItem/Price/@agreedIsPFPrice

type	xs:boolean
properties	isRef  0 use  optional

attribute DocumentType/LineItem/Price/@priceTag

type	abans:PriceTagEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  NONE  enumeration  REGULAR  enumeration  SPECIALOFFER

attribute DocumentType/LineItem/Price/@priceTagVisible

type	xs:boolean
properties	isRef  0 use  optional

element DocumentType/LineItem/AllowanceAndCharge

diagram
type	abans:AllowanceAndChargeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:Total
annotation	documentation Used only for line item allowances or charges. For document level allowances or charges, see MiscDataLineItem. The values inside this element refer to the price, not the amount (makes a difference if the quantity is not equal to 1).

element DocumentType/LineItem/Tax

diagram
type	abans:TaxType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:TotalBaseAmount abans:TotalAmount
annotation	documentation Line item tax information, includes everything from this line item. Important: All allowance and charges are also included.

element DocumentType/LineItem/Amount

diagram
type	extension of abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required         inclusiveTax xs:boolean required         allowanceAndCharge abans:AllowanceAndChargeEnum required
annotation	documentation Line item total amount. There can be multiple Amount elements, but for bills for example there should be one with inclusiveTax="true" and allowanceAndCharge="AFTER". If there is a tax element, there should be an Amount element with inclusiveTax="false" and allowanceAndCharge="AFTER" which is then the same value as Tax/Detail/BaseAmount.

attribute DocumentType/LineItem/Amount/@inclusiveTax

type	xs:boolean
properties	isRef  0 use  required

attribute DocumentType/LineItem/Amount/@allowanceAndCharge

type	abans:AllowanceAndChargeEnum
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  BEFORE  enumeration  AFTER  enumeration  UNKNOWN

element DocumentType/LineItem/Reference

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:DocumentReference abans:AgreedReference
annotation	documentation All kind of references.

element DocumentType/LineItem/Reference/DocumentReference

diagram
type	extension of abans:DocumentReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:OfferRequest abans:Offer abans:PurchaseOrder abans:OrderConfirmation abans:DeliveryNote abans:Bill abans:Reminder abans:AbstractOrder
attributes	Name   Type   Use   Default   Fixed   annotation party abans:PartyReferenceType required
annotation	documentation References to the documents of the supplier

attribute DocumentType/LineItem/Reference/DocumentReference/@party

type	abans:PartyReferenceType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  CUSTOMER  enumeration  VENDOR

element DocumentType/LineItem/Reference/AgreedReference

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Mutually agreed reference

element DocumentType/LineItem/DeliveryAddress

diagram
type	abans:PartyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
annotation	documentation Delivery address, if different between the line items.

element DocumentType/LineItem/AgreedAddress

diagram
type	abans:AgreedAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Address
annotation	documentation Info about different possible parties on the Customer side

element DocumentType/LineItem/DeliveryInfo

diagram
type	abans:DeliveryInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:DeliveryDate abans:ConfirmedDate abans:DesiredDate abans:AgreedShippingID abans:ShippingText abans:TrackID abans:PartialDelivery abans:NumberOfLogisticalUnits
annotation	documentation Delivery info, if different between the line items.

element DocumentType/LineItem/Stock

diagram
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
children	abans:StockLocation abans:BinLocation abans:BatchOrLotOrSerialNumber
attributes	Name   Type   Use   Default   Fixed   annotation incoming xs:boolean optional   false
annotation	documentation Use only for AbstractOrder

attribute DocumentType/LineItem/Stock/@incoming

type	xs:boolean
properties	isRef  0 default  false use  optional

element DocumentType/LineItem/Stock/StockLocation

diagram
type	xs:string
properties	isRef  0 content  simple

element DocumentType/LineItem/Stock/BinLocation

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DocumentType/LineItem/Stock/BatchOrLotOrSerialNumber

diagram
type	abans:BatchOrLotOrSerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BatchOrLotOrSerialNumberData
attributes	Name   Type   Use   Default   Fixed   annotation type abans:BatchOrLotOrSerialNumberEnum required

element DocumentType/LineItem/BatchOrLotOrSerialNumber

diagram
type	abans:BatchOrLotOrSerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BatchOrLotOrSerialNumberData
attributes	Name   Type   Use   Default   Fixed   annotation type abans:BatchOrLotOrSerialNumberEnum required

element DocumentType/LineItem/LogisticInformation

diagram
type	abans:LogisticInformationType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:LogisticUnits
annotation	documentation Transport information, e.g. SSCC. This element must only be used if there is no BatchOrLotOrVintage information available.

element DocumentType/LineItem/Agent

diagram
type	abans:AgentType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Name abans:Rate abans:Amount abans:AgreedID

element DocumentType/LineItem/Text

diagram
type	extension of abans:TextType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         type abans:TextEnum optional         subType xs:string optional         agreedType xs:string optional
annotation	documentation Attribute "type" contains "ItemText" by default

attribute DocumentType/LineItem/Text/@type

type	abans:TextEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  ITEMTEXT  enumeration  DESCRIPTION  enumeration  VARIANTDESCRIPTION  enumeration  ADDITIONALDESCRIPTION

attribute DocumentType/LineItem/Text/@subType

type	xs:string
properties	isRef  0 use  optional

attribute DocumentType/LineItem/Text/@agreedType

type	xs:string
properties	isRef  0 use  optional

element DocumentType/LineItem/AccountAssignment

diagram
type	abans:AccountAssignmentType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:AccountNumber abans:CostCenter abans:CostUnit abans:ProjectNumber abans:ServiceCode abans:ConsolidationCode abans:Division
attributes	Name   Type   Use   Default   Fixed   annotation accountType abans:AccountEnum required         party abans:PartyReferenceType required
annotation	documentation Different account assignments. Use the required "party" attribute to specify which party this information is relevant for. Typically, in a PurchaseOrder, and OrderConfirmation, a DeliveryNote and in a Bill, the DEBIT value is needed if the party=="CUSTOMER" account is referred to.

element DocumentType/LineItem/UnitRelations

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:BaseUnit abans:Factor abans:Unit
annotation	documentation Relations between units, eg. BaseUnit=MMT (millimeters), Factor=0.001, Unit=MTR (meters)

element DocumentType/LineItem/UnitRelations/BaseUnit

diagram
type	extension of abans:UnitType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unitType abans:UnitTypeEnum optional         agreedUnit xs:string optional

attribute DocumentType/LineItem/UnitRelations/BaseUnit/@unitType

type	abans:UnitTypeEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  PURCHASE  enumeration  PACKAGING  enumeration  PRICE  enumeration  SALES  enumeration  STOCK  enumeration  BASE

attribute DocumentType/LineItem/UnitRelations/BaseUnit/@agreedUnit

type	xs:string
properties	isRef  0 use  optional

element DocumentType/LineItem/UnitRelations/Factor

diagram
type	xs:decimal
properties	isRef  0 content  simple

element DocumentType/LineItem/UnitRelations/Unit

diagram
type	extension of abans:UnitType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unitType abans:UnitTypeEnum optional         agreedUnit xs:string optional

attribute DocumentType/LineItem/UnitRelations/Unit/@unitType

type	abans:UnitTypeEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  PURCHASE  enumeration  PACKAGING  enumeration  PRICE  enumeration  SALES  enumeration  STOCK  enumeration  BASE

attribute DocumentType/LineItem/UnitRelations/Unit/@agreedUnit

type	xs:string
properties	isRef  0 use  optional

element DocumentType/LineItem/MiscData

diagram
type	abans:MiscDataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Taxfree abans:PersonInCharge abans:AgreedIDOfPersonInCharge abans:IsVisaOK abans:AgreedCode abans:AgreedFixedPriceID abans:ContractID abans:ObjectID
annotation	documentation Some additional information used both in the header and on each line item.

element DocumentType/LineItem/MiscDataLineItem

diagram
type	abans:MiscDataLineItemType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:AllowanceOrCharge abans:ForInformationOnly abans:IgnoredForDocumentDiscount abans:Project abans:Inventory abans:ValueDate abans:PeriodOfService
annotation	documentation Misc data, grouped together in order to prevent the line item itself to become too big.

element DocumentType/LineItem/AgreedExtendedTableData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for Extended Tables in ABACUS

element DocumentType/LineItem/AgreedUserFieldData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for IBF (Individual User Fields) in ABACUS

element DocumentType/LineItem/AgreedFreeFieldData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for free fields in ABACUS

element DocumentType/LineItem/AgreedVariableData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for user defined shop variables

element DocumentType/LineItem/AgreedData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for B2B mutually agreed data exchange

element DocumentType/Summary

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:DocumentCurrency abans:BaseCurrency abans:ExchangeRate abans:Tax abans:TotalAmount abans:TotalAmountPaid abans:TotalAmountDue abans:SettledSeparately abans:PaymentTerms abans:PaymentMethod abans:Text
annotation	documentation All document level financial data, payment Terms etc., information that is usually contained in the footer of (for example) a bill.

element DocumentType/Summary/DocumentCurrency

diagram
type	extension of abans:CurrencyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}
annotation	documentation The Currency specified here is considered the main currency of this document. swissDIGIN: K-01-04

element DocumentType/Summary/BaseCurrency

diagram
type	abans:CurrencyType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}
annotation	documentation "Leitwährung"

element DocumentType/Summary/ExchangeRate

diagram
type	abans:RateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation category abans:RateEnum optional         documentation S=Standard M=Mixed E=Excempt
annotation	documentation MUST be calculated with base 1. Example: DocumentCurrency="USD", BaseCurrency="CHF", Exchange Rate is 1.35, meaning 1 USD = 1.35 CHF.

element DocumentType/Summary/Tax

diagram
type	abans:TaxType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Detail abans:TotalBaseAmount abans:TotalAmount
annotation	documentation Document level tax information, including everything.

element DocumentType/Summary/TotalAmount

diagram
type	extension of abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Grand Total, incl. Tax if applicable. If TotalAmountPaid and TotalAmountDue is present as well, then DUE must be Total minus PAID, for any given currency.

element DocumentType/Summary/TotalAmountPaid

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Total amount paid, incl. Tax if applicable.

element DocumentType/Summary/TotalAmountDue

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Total amount due, incl. Tax if applicable.

element DocumentType/Summary/SettledSeparately

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If the amount due is already paid or will be paid for separately (e.g. LSV+), set this element to true. Do not set it to true if a prepayment is equal or bigger than the TotalAmount. For bills with a TotalAmount of 0.00, do *not* set this flag. For bills which are not due for payment because the amount is too small, do set this flag.

element DocumentType/Summary/PaymentTerms

diagram
type	abans:PaymentTermsType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:MinimumAmount abans:NetPeriod abans:Discount abans:PenaltyPercentage abans:AgreedPaymentTermID abans:Text
annotation	documentation Given or offered terms for the payment.

element DocumentType/Summary/PaymentMethod

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:CreditCard abans:DesiredPaymentMethod abans:Percentage abans:Amount abans:DesiredCurrency abans:AgreedPaymentMethod
annotation	documentation One or more PaymentMethods.

element DocumentType/Summary/PaymentMethod/CreditCard

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:CardID abans:AgreedCardID abans:Description abans:CardNumber abans:ExpirationMonth abans:ExpirationYear abans:NameOnCard abans:AdditionalCode abans:TransactionID abans:AuthorizationCode
annotation	documentation Card information.

element DocumentType/Summary/PaymentMethod/CreditCard/CardID

diagram
type	abans:CardIDEnum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  MASTERCARD  enumeration  AMERICANEXPRESS  enumeration  VISA  enumeration  JCB  enumeration  DINERS  enumeration  DISCOVER  enumeration  POSTCARD  enumeration  AGREED

element DocumentType/Summary/PaymentMethod/CreditCard/AgreedCardID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutully agreed card id.

element DocumentType/Summary/PaymentMethod/CreditCard/Description

diagram
type	abans:StringWithLanguageType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional

element DocumentType/Summary/PaymentMethod/CreditCard/CardNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DocumentType/Summary/PaymentMethod/CreditCard/ExpirationMonth

diagram
type	restriction of xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  12

element DocumentType/Summary/PaymentMethod/CreditCard/ExpirationYear

diagram
type	restriction of xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  2000  maxInclusive  2999

element DocumentType/Summary/PaymentMethod/CreditCard/NameOnCard

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DocumentType/Summary/PaymentMethod/CreditCard/AdditionalCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation CVV for example

element DocumentType/Summary/PaymentMethod/CreditCard/TransactionID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Card transaction ID

element DocumentType/Summary/PaymentMethod/CreditCard/AuthorizationCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Authorization code for online cards

element DocumentType/Summary/PaymentMethod/DesiredPaymentMethod

diagram
type	abans:DesiredPaymentMethodEnum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  CREDITCARD  enumeration  BILL  enumeration  CASHONDELIVERY  enumeration  ADVANCEPAYMENT
annotation	documentation Usually used only for OfferRequests and PurchaseOrders.

element DocumentType/Summary/PaymentMethod/Percentage

diagram
type	abans:PercentageType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If multiple PaymentMethods are specified, they must be divided using this Percentage element.

element DocumentType/Summary/PaymentMethod/Amount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Total amount of this PaymentMethod.

element DocumentType/Summary/PaymentMethod/DesiredCurrency

diagram
type	abans:CurrencyType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}
annotation	documentation Usually used only for OfferRequests and PurchaseOrders.

element DocumentType/Summary/PaymentMethod/AgreedPaymentMethod

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutully agreed payment method.

element DocumentType/Summary/Text

diagram
type	extension of abans:TextType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional         type abans:SummaryTextTypeEnum optional         agreedType xs:string optional
annotation	documentation Text of Summery. For each language, this element is repeated. If multiple Text elements are present, then the text should contain the same information.

attribute DocumentType/Summary/Text/@type

type	abans:SummaryTextTypeEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  AGREEDTYPE  enumeration  DOCUMENT

attribute DocumentType/Summary/Text/@agreedType

type	xs:string
properties	isRef  0 use  optional

complexType IDAndDateType

diagram
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
used by	elements  DocumentReferenceType/AbstractOrder DocumentType/LineItem/Reference/AgreedReference ReferenceType/AgreedReference DocumentReferenceType/Bill DocumentReferenceType/DeliveryNote DocumentReferenceType/Offer DocumentReferenceType/OfferRequest DocumentReferenceType/OrderConfirmation ReferenceType/OriginalDocument DocumentReferenceType/PurchaseOrder DocumentReferenceType/Reminder ReferenceType/ThisDocument

element IDAndDateType/ID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If used in Header/Reference/ThisDocument: swissDIGIN: K-01-02. If used in Header/Reference/DocumentReference/PurchaseOrder: swissDIGIN: K-01-05. If used in a CreditAdvice in Header/Reference/DocumentReference/Bill: swissDIGIN: K-01-07.

element IDAndDateType/SubID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "RNr"

element IDAndDateType/LineItemID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element IDAndDateType/LineItemSubID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element IDAndDateType/LineItemSubID2

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element IDAndDateType/Date

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation swissDIGIN: K-01-03

complexType LogisticInformationType

diagram
children	abans:LogisticUnits
used by	elements  BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/LogisticInformation DocumentType/LineItem/LogisticInformation
annotation	documentation Transport information, e.g. SSCC numbers

element LogisticInformationType/LogisticUnits

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:SSCC abans:Quantity abans:GrossWeight

element LogisticInformationType/LogisticUnits/SSCC

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation SSCC (Serial Shipping Container Code)

element LogisticInformationType/LogisticUnits/Quantity

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The line item this element refers to must have a "Quantity" element. This quanitiy element here has the same unit as the line item "Quantity" element for which the attribute "type" is equal to "DELIVERED".

element LogisticInformationType/LogisticUnits/GrossWeight

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms

complexType MiscDataHeaderType

diagram
children	abans:AgreedDocumentCategory abans:AgreedDocumentStatus abans:DocumentComment abans:AgreedPaymentNumber abans:FreeDocumentGroupData abans:ValueDate abans:SubsidiaryDate abans:DispositionDate abans:BusinessCaseNumber abans:CostGroup abans:PaymentCause abans:PaperCopyIsTransmitted abans:AgreedTaxType abans:AgreedTaxCode abans:PeriodOfService abans:Weight abans:PrintDate
used by	element  DocumentType/Header/MiscDataHeader

element MiscDataHeaderType/AgreedDocumentCategory

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Can contain the "Belegart" (Use only for local ABACUS interface).

element MiscDataHeaderType/AgreedDocumentStatus

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Can contain "OFFEN" if that document is still open, "ERLED" is this document is settled (Use only for local ABACUS interface).

element MiscDataHeaderType/DocumentComment

diagram
type	abans:StringWithLanguageType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional
annotation	documentation Additional document comment.

element MiscDataHeaderType/AgreedPaymentNumber

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Zahlungswegnummer"

element MiscDataHeaderType/FreeDocumentGroupData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation "Freie Beleggruppennummer 1-3" in NumberField with agreedID 0-2. "Freie Beleggruppencode 1-3" in StringField with agreedID 0-2.

element MiscDataHeaderType/ValueDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation For accounting purposes only. General ledger accounting date. "Fibubelegdatum". For online transmitted documents, fill the general ledger date of the receiver here.

element MiscDataHeaderType/SubsidiaryDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation For accounting purposes only. Use for example in accounts receivable ("Kredibelegdatum", "Debibelegdatum").

element MiscDataHeaderType/DispositionDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Used if the timeline for reminders is not based on the DueDate ("Dispodatum").

element MiscDataHeaderType/BusinessCaseNumber

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element MiscDataHeaderType/CostGroup

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Grouping element. "Belegkostenstellengruppe", "Kostengruppennummer"

element MiscDataHeaderType/PaymentCause

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	documentation "Überweisungsgrund" or "Zahlungsgrund"

element MiscDataHeaderType/PaperCopyIsTransmitted

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Must only be true only if an additional paper copy of this document is sent from the sender to the receiver.

element MiscDataHeaderType/AgreedTaxType

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
annotation	documentation Mutually agreed tax type.

element MiscDataHeaderType/AgreedTaxCode

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
annotation	documentation Mutually agreed tax code.

element MiscDataHeaderType/PeriodOfService

diagram
type	abans:DateOrDateTimeRangeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:From abans:Until
annotation	documentation Period of the service for which this bill is issued. The date or date period which is tax relevant is the first date that exists in the following order: 1. LineItem/MiscDataLineItem/PeriodOfService 2. LineItem/DeliveryInfo/DeliveryDate 3. Header/MiscDataHeader/PeriodOfService 4. Header/DeliveryInfo/DeliveryDate The element Header/DeliveryInfo/DeliveryDate is always filled in if the AbaDoc is generated from ABACUS ABEA. swissDIGIN: K-04-01-a/b.

element MiscDataHeaderType/Weight

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:GrossWeight abans:NetWeight

element MiscDataHeaderType/Weight/GrossWeight

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms

element MiscDataHeaderType/Weight/NetWeight

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In kilograms

element MiscDataHeaderType/PrintDate

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Desired date of electronic presention, handing over, or, in case of physical paper printing, the desired date for the print and delivery process.

complexType MiscDataLineItemType

diagram
children	abans:AllowanceOrCharge abans:ForInformationOnly abans:IgnoredForDocumentDiscount abans:Project abans:Inventory abans:ValueDate abans:PeriodOfService
used by	element  DocumentType/LineItem/MiscDataLineItem

element MiscDataLineItemType/AllowanceOrCharge

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:BaseAmount abans:Rate abans:UseSubTotalForNextDetail abans:AgreedCode abans:IsCalculationAmountBased
annotation	documentation Detailed specification of an allowance or charge. The amount of the line item must match the "BaseAmount" times the "Rate". This element must only be here if the "type" attribute on "LineItem" is set to ALLOWANCEORCHARGE or to SHIPPINGANDHANDLING.

element MiscDataLineItemType/AllowanceOrCharge/BaseAmount

diagram
type	extension of abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required         inclusiveTax xs:boolean optional   false
annotation	documentation Basis for allowance or charge calculation. Usually, this is positive even for allowances. There may be two values present, one incl. and one excl. tax. They must have the same currency.

attribute MiscDataLineItemType/AllowanceOrCharge/BaseAmount/@inclusiveTax

type	xs:boolean
properties	isRef  0 default  false use  optional

element MiscDataLineItemType/AllowanceOrCharge/Rate

diagram
type	abans:RateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation category abans:RateEnum optional         documentation S=Standard M=Mixed E=Excempt
annotation	documentation Percentage of BaseAmount for allowance or charge. In case of allowance, this value is usually negative.

element MiscDataLineItemType/AllowanceOrCharge/UseSubTotalForNextDetail

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple default  false
annotation	documentation True if the next allowance or charge is to be calculated regarding the Amount of this line item.

element MiscDataLineItemType/AllowanceOrCharge/AgreedCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutually Agreed code for allowance or charge

element MiscDataLineItemType/AllowanceOrCharge/IsCalculationAmountBased

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple default  false
annotation	documentation True if this allowanceOrCharge is calculated from an amount, rather than from a percentage value.

element MiscDataLineItemType/ForInformationOnly

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If present, do not count this LineItem, i.e. Amounts should be zero.

element MiscDataLineItemType/IgnoredForDocumentDiscount

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If present and true, the this line item is ignored for all kind of document level allownances.

element MiscDataLineItemType/Project

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:SeperatelyTransmittedToProject abans:ActivityType abans:SettlementNumber abans:EmployeeNumber abans:Charging abans:ChargingType abans:ExternalFactor abans:ExternalAmount abans:GeneralPlanNumber abans:DetailPlanNumber abans:InternalProjectAddressNumber abans:InternalInvoiceAddressNumber abans:AgreedFreeFieldData
annotation	documentation "Projektrechnung"

element MiscDataLineItemType/Project/SeperatelyTransmittedToProject

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element MiscDataLineItemType/Project/ActivityType

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Leistungsart"

element MiscDataLineItemType/Project/SettlementNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Abrechnungscode"

element MiscDataLineItemType/Project/EmployeeNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Payroll employee number

element MiscDataLineItemType/Project/Charging

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Abrechnungscode"

element MiscDataLineItemType/Project/ChargingType

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Verrechnungsart"

element MiscDataLineItemType/Project/ExternalFactor

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element MiscDataLineItemType/Project/ExternalAmount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required

element MiscDataLineItemType/Project/GeneralPlanNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Grobplannummer"

element MiscDataLineItemType/Project/DetailPlanNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Detailplannummer"

element MiscDataLineItemType/Project/InternalProjectAddressNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Interne Projektkundenadressnumer"

element MiscDataLineItemType/Project/InternalInvoiceAddressNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Interne Rechnungsadressnummer"

element MiscDataLineItemType/Project/AgreedFreeFieldData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField

element MiscDataLineItemType/Inventory

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:TransmitToInventory abans:TransactionType abans:InventoryNumber
annotation	documentation "Anlagen".

element MiscDataLineItemType/Inventory/TransmitToInventory

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element MiscDataLineItemType/Inventory/TransactionType

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element MiscDataLineItemType/Inventory/InventoryNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Anlagennummer"

element MiscDataLineItemType/ValueDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation For accounting purposes only. General ledger accounting date. "Fibubelegdatum". For online transmitted documents, fill the general ledger date of the receiver here.

element MiscDataLineItemType/PeriodOfService

diagram
type	abans:DateOrDateTimeRangeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:From abans:Until
annotation	documentation Period of the service for which this position is issued. swissDIGIN: P-05-01-a/b.

complexType MiscDataType

diagram
children	abans:Taxfree abans:PersonInCharge abans:AgreedIDOfPersonInCharge abans:IsVisaOK abans:AgreedCode abans:AgreedFixedPriceID abans:ContractID abans:ObjectID
used by	elements  DocumentType/Header/MiscData DocumentType/LineItem/MiscData
annotation	documentation Misc data that is used both in the header and in the line item

element MiscDataType/Taxfree

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If present and true, the current line item or the whole document is tax free.

element MiscDataType/PersonInCharge

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Full name of person who is responsible

element MiscDataType/AgreedIDOfPersonInCharge

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Use only for local ABACUS interface.

element MiscDataType/IsVisaOK

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation True if all necessary signatures have been granted (Use only for local ABACUS interface).

element MiscDataType/AgreedCode

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation counter xs:int optional
annotation	documentation Agreed Code. For local ABACUS interface: Free Code, for example: "FIBU-Code"

attribute MiscDataType/AgreedCode/@counter

type	xs:int
properties	isRef  0 use  optional

element MiscDataType/AgreedFixedPriceID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutually agreed fixed price identification.

element MiscDataType/ContractID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation ID of contract this document or this line item is based upon. If used in Header: swissDIGIN: K-01-06

element MiscDataType/ObjectID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Object ID this document or this line item refers to. Example: Technical object ID of the building.

complexType PartyIDType

diagram
children	abans:SenderID abans:ReceiverID abans:EAN abans:DUNS abans:GLN abans:InternalIDByOtherParty abans:AgreedID
used by	elements  AbaDoc/Package/InterchangeSender/PartyID AbaDoc/Package/InterchangeReceiver/PartyID PartyType/PartyID SupplierType/PartyID

element PartyIDType/SenderID

diagram
type	abans:ParticipantIDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:NetworkID abans:ID abans:SubID
annotation	documentation Electronic sender ID and network id

element PartyIDType/ReceiverID

diagram
type	abans:ParticipantIDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:NetworkID abans:ID abans:SubID
annotation	documentation Electronic receiver ID and network id

element PartyIDType/EAN

diagram
type	abans:EANType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation EAN number of company

element PartyIDType/DUNS

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Dun and Bradstreet id of company

element PartyIDType/GLN

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Global Location Number, according to EAN/UPC

element PartyIDType/InternalIDByOtherParty

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Internal ID of this participant in the system of the other party

element PartyIDType/AgreedID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Mutually agreed ID

complexType PartyType

diagram
children	abans:BankInfo abans:TaxID abans:PartyID abans:NameAddress abans:OnlineInfo abans:Reference
used by	elements  AgreedAddressType/Address DocumentType/Header/VendorParties/Biller DocumentType/Header/CustomerParties/Consignee DocumentType/Header/CustomerParties/Customer DocumentType/Header/CustomerParties/DeliveryAddress DocumentType/LineItem/DeliveryAddress DocumentType/Header/VendorParties/Manufacturer DocumentType/Header/CustomerParties/Payer DocumentType/Header/CustomerParties/PurchaseOrderer DocumentType/Header/VendorParties/Supplier DocumentType/Header/VendorParties/Vendor
annotation	documentation Identifies and specifies information about a Party

element PartyType/BankInfo

diagram
type	abans:BankInfoType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:IBAN abans:Bank abans:ESRParticipantID abans:PostalAccount
attributes	Name   Type   Use   Default   Fixed   annotation currency abans:CurrencyType optional
annotation	documentation Bank information

element PartyType/TaxID

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation countryCode abans:CountryCodeType required         state xs:string optional
annotation	documentation Country specific tax numbers or IDs Use "state" attribute where mandatory, example: US. If in Header/VendorParties/Vendor: swissDIGIN: K-02-02.1

attribute PartyType/TaxID/@countryCode

type	abans:CountryCodeType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}

attribute PartyType/TaxID/@state

type	xs:string
properties	isRef  0 use  optional

element PartyType/PartyID

diagram
type	abans:PartyIDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:SenderID abans:ReceiverID abans:EAN abans:DUNS abans:GLN abans:InternalIDByOtherParty abans:AgreedID

element PartyType/NameAddress

diagram
type	abans:NameAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034
annotation	documentation Name, address and contact information

element PartyType/OnlineInfo

diagram
type	abans:OnlineInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:GUID abans:UserAccountName abans:Password abans:IsPasswordCrypted abans:HasPasswordChanged abans:IsNewsletterEnabled abans:IsDisabled abans:IsInactive abans:WasDeleted abans:IsEBusinessEnabled abans:OnlyWithPrePayment abans:DefaultCurrency abans:DefaultHierarchy
annotation	documentation Additional info if party is using online access

element PartyType/Reference

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:Name
annotation	documentation "Your reference" ("Ihr Zeichen"), "Our reference" ("Unser Zeichen"), depending on where it is used.

element PartyType/Reference/ID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation swissDIGIN: K-03-06-a

element PartyType/Reference/Name

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation swissDIGIN: K-03-06-b

complexType PaymentTermsType

diagram
children	abans:MinimumAmount abans:NetPeriod abans:Discount abans:PenaltyPercentage abans:AgreedPaymentTermID abans:Text
used by	elements  DocumentType/Summary/PaymentTerms SupplierType/PaymentTerms
annotation	documentation Information about the given or offered payment terms

element PaymentTermsType/MinimumAmount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required

element PaymentTermsType/NetPeriod

diagram
type	abans:PeriodType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Date abans:Months abans:Days

element PaymentTermsType/Discount

diagram
type	abans:DiscountType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:DiscountPercentage abans:Period

element PaymentTermsType/PenaltyPercentage

diagram
type	abans:PercentageType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element PaymentTermsType/AgreedPaymentTermID

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element PaymentTermsType/Text

diagram
type	extension of abans:TextType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Line abans:FormattedText
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional

complexType PeriodType

diagram
children	abans:Date abans:Months abans:Days
used by	elements  PaymentTermsType/NetPeriod DiscountType/Period
annotation	documentation Payment period information

element PeriodType/Date

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element PeriodType/Months

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element PeriodType/Days

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

complexType QuantityType

diagram
type	extension of xs:decimal
properties	base  xs:decimal
used by	element  DocumentType/LineItem/Quantity
attributes	Name   Type   Use   Default   Fixed   annotation type abans:QuantityTypeEnum required         documentation 'DELIVERYREQUEST' is deprecated, don't use it. agreedType xs:string optional         unit abans:UnitType optional         agreedUnit xs:string optional         unitFactor xs:decimal optional   1
annotation	documentation Quantity information. If the "unit" attribute is used, it must contain a valid "UNECE Recommendation 20" Common code.

attribute QuantityType/@type

type	abans:QuantityTypeEnum
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  ASSEMBLED  enumeration  DELIVERED  enumeration  DELIVERYREQUEST  enumeration  INVOICED  enumeration  ORDERED  enumeration  ORIGINALLYORDERED  enumeration  OUTSTANDING  enumeration  REBATEINKIND  enumeration  CONFIRMED  enumeration  OFFERED  enumeration  AGREED  enumeration  OFFERREQUEST
annotation	documentation 'DELIVERYREQUEST' is deprecated, don't use it.

attribute QuantityType/@agreedType

type	xs:string
properties	isRef  0 use  optional

attribute QuantityType/@unit

type	abans:UnitType
properties	isRef  0 use  optional

attribute QuantityType/@agreedUnit

type	xs:string
properties	isRef  0 use  optional

attribute QuantityType/@unitFactor

type	xs:decimal
properties	isRef  0 default  1 use  optional

complexType RateType

diagram
type	extension of abans:PercentageType
properties	base  abans:PercentageType
used by	elements  DocumentType/Summary/ExchangeRate AllowanceAndChargeType/Detail/Rate MiscDataLineItemType/AllowanceOrCharge/Rate TaxType/Detail/Rate
attributes	Name   Type   Use   Default   Fixed   annotation category abans:RateEnum optional         documentation S=Standard M=Mixed E=Excempt

attribute RateType/@category

type	abans:RateEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  S  enumeration  M  enumeration  E
annotation	documentation S=Standard M=Mixed E=Excempt

complexType ReferenceType

diagram
children	abans:ThisDocument abans:OriginalDocument abans:DocumentReference abans:PaymentReference abans:AgreedReference abans:DocumentPresentment
used by	element  DocumentType/Header/Reference
annotation	documentation All kind of document references, including payment reference info

element ReferenceType/ThisDocument

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation This document ID and date

element ReferenceType/OriginalDocument

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Used only if the current document replaces another document.

element ReferenceType/DocumentReference

diagram
type	extension of abans:DocumentReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:OfferRequest abans:Offer abans:PurchaseOrder abans:OrderConfirmation abans:DeliveryNote abans:Bill abans:Reminder abans:AbstractOrder
attributes	Name   Type   Use   Default   Fixed   annotation party abans:PartyReferenceType required
annotation	documentation References to the documents of the supplier

attribute ReferenceType/DocumentReference/@party

type	abans:PartyReferenceType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  CUSTOMER  enumeration  VENDOR

element ReferenceType/PaymentReference

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ESRReferenceNumber abans:IPIPurpose abans:IPIExpensesType abans:IPIFormCode abans:IsAmountVariable
annotation	documentation Swiss payment and document reference standard

element ReferenceType/PaymentReference/ESRReferenceNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element ReferenceType/PaymentReference/IPIPurpose

diagram
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  35

element ReferenceType/PaymentReference/IPIExpensesType

diagram
type	abans:IPIExpensesEnum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  ORDERINGCUSTOMER  enumeration  BENEFICIARY  enumeration  SHARED

element ReferenceType/PaymentReference/IPIFormCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation 0=unstructured, 1=structured.

element ReferenceType/PaymentReference/IsAmountVariable

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element ReferenceType/AgreedReference

diagram
type	abans:IDAndDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:ID abans:SubID abans:LineItemID abans:LineItemSubID abans:LineItemSubID2 abans:Date
annotation	documentation Mutually agreed reference

element ReferenceType/DocumentPresentment

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:PresentmentURL
annotation	documentation Information about a human readable representation of this document

element ReferenceType/DocumentPresentment/PresentmentURL

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation HTTP or HTTPS URL to a human readable representation of this document

complexType SupplierType

diagram
children	abans:NameAddress abans:PartyID abans:PaymentTerms
used by	element  AbaDoc/Supplier
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034

attribute SupplierType/@creationDateTime

type	xs:dateTime
properties	isRef  0
annotation	documentation Since 2.0034

element SupplierType/NameAddress

diagram
type	abans:NameAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034

element SupplierType/PartyID

diagram
type	abans:PartyIDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:SenderID abans:ReceiverID abans:EAN abans:DUNS abans:GLN abans:InternalIDByOtherParty abans:AgreedID

element SupplierType/PaymentTerms

diagram
type	abans:PaymentTermsType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:MinimumAmount abans:NetPeriod abans:Discount abans:PenaltyPercentage abans:AgreedPaymentTermID abans:Text

complexType TaxType

diagram
children	abans:Detail abans:TotalBaseAmount abans:TotalAmount
used by	elements  AllowanceAndChargeType/Detail/Tax AllowanceAndChargeType/Total/Tax DocumentType/LineItem/Tax DocumentType/Summary/Tax

element TaxType/Detail

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:BaseAmount abans:Rate abans:Amount abans:TaxDate abans:Description abans:AgreedTaxCode
annotation	documentation Different Tax Rates may be specified here. If present, the sum of the Amount elements must match the TotalAmount

element TaxType/Detail/BaseAmount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Base Amount for Tax calculation, exclusive Tax

element TaxType/Detail/Rate

diagram
type	abans:RateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation category abans:RateEnum optional         documentation S=Standard M=Mixed E=Excempt
annotation	documentation Tax Rate of Tax in percent

element TaxType/Detail/Amount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Tax Amount calculated from BaseAmount and Rate

element TaxType/Detail/TaxDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If not set, the element "Header/MiscDataHeader/ValueDate" is used instead. Fill this field in case a tax code has changed or is about to change in order to define which tax rate this is based on.

element TaxType/Detail/Description

diagram
type	abans:StringWithLanguageType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional
annotation	documentation Description of this tax detail

element TaxType/Detail/AgreedTaxCode

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation agreedTaxType abans:TaxTypeEnum optional
annotation	documentation Can contain a Tax code that is mutually Agreed between all parties

attribute TaxType/Detail/AgreedTaxCode/@agreedTaxType

type	abans:TaxTypeEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  INCLUSIVE  enumeration  EXCLUSIVE  enumeration  TAXFREE

element TaxType/TotalBaseAmount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Total of all BaseAmount elements from Details. Since 2.0034.

element TaxType/TotalAmount

diagram
type	abans:AmountType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation Total of all Amount elements from Details

complexType TextType

diagram
children	abans:Line abans:FormattedText
used by	elements  DocumentType/Header/Text DocumentType/LineItem/Text DocumentType/Summary/Text PaymentTermsType/Text
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional
annotation	documentation General text type. Can hold formatted and unformatted text. The unformatted text must always be present

attribute TextType/@language

type	abans:LanguageType
properties	isRef  0 use  optional
facets	Kind  Value  annotation  pattern  \p{Ll}\p{Ll}

element TextType/Line

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
annotation	documentation One element for each line of text. Without any formating information whatsoever.

element TextType/FormattedText

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation mimeType xs:string required
annotation	documentation If present, this FormattedText *MUST* contain the same information as the Line elements above (Unless used internally or in a agreed scenario). The format must be specified in the mimeType attribute. Examples: application/rtf text/html

attribute TextType/FormattedText/@mimeType

type	xs:string
properties	isRef  0 use  required

simpleType AccountEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  AccountAssignmentType/@accountType
facets	Kind  Value  annotation  enumeration  DEBIT  enumeration  CREDIT

simpleType AllowanceAndChargeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attributes  DocumentType/LineItem/Price/@allowanceAndCharge DocumentType/LineItem/Amount/@allowanceAndCharge
facets	Kind  Value  annotation  enumeration  BEFORE  enumeration  AFTER  enumeration  UNKNOWN

simpleType BatchOrLotOrSerialNumberEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  BatchOrLotOrSerialNumberType/@type
facets	Kind  Value  annotation  enumeration  BATCH  enumeration  LOT  enumeration  SERIALNUMBER

simpleType CardIDEnum

type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	element  DocumentType/Summary/PaymentMethod/CreditCard/CardID
facets	Kind  Value  annotation  enumeration  MASTERCARD  enumeration  AMERICANEXPRESS  enumeration  VISA  enumeration  JCB  enumeration  DINERS  enumeration  DISCOVER  enumeration  POSTCARD  enumeration  AGREED

simpleType CostUnitEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  AccountAssignmentType/CostUnit/@costUnitType
facets	Kind  Value  annotation  enumeration  COSTUNIT  enumeration  PROJECTNUMBER  enumeration  UNKNOWN

simpleType DesiredPaymentMethodEnum

type	restriction of xs:string
properties	base  xs:string
used by	element  DocumentType/Summary/PaymentMethod/DesiredPaymentMethod
facets	Kind  Value  annotation  enumeration  CREDITCARD  enumeration  BILL  enumeration  CASHONDELIVERY  enumeration  ADVANCEPAYMENT

simpleType IPIExpensesEnum

type	restriction of xs:string
properties	base  xs:string
used by	element  ReferenceType/PaymentReference/IPIExpensesType
facets	Kind  Value  annotation  enumeration  ORDERINGCUSTOMER  enumeration  BENEFICIARY  enumeration  SHARED

simpleType LineItemTypeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/LineItem/@type
facets	Kind  Value  annotation  enumeration  REGULAR  enumeration  ALLOWANCEORCHARGE  enumeration  SHIPPINGANDHANDLING  enumeration  ROUNDINGDIFFERENCE  enumeration  MINMUMINVOICEVALUESURCHARGE  enumeration  PAYMENTONACCOUNT

simpleType PartyEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/LineItem/ProductID/@party
facets	Kind  Value  annotation  enumeration  VENDOR  enumeration  CUSTOMER  enumeration  COMMON  enumeration  AGREED  enumeration  UNKNOWN

simpleType PriceTagEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/LineItem/Price/@priceTag
facets	Kind  Value  annotation  enumeration  NONE  enumeration  REGULAR  enumeration  SPECIALOFFER

simpleType PriorityEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/@priority
facets	Kind  Value  annotation  enumeration  LOW  enumeration  NORMAL  enumeration  HIGH

simpleType ProductTypeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/LineItem/ProductID/@type
facets	Kind  Value  annotation  enumeration  EAN  enumeration  UPC  enumeration  GTIN  enumeration  UNSPSC  enumeration  INTERNALNUMBER  enumeration  INTERNALID  enumeration  INTERNALDESCRIPTION  enumeration  INTERNALVARIANTID  enumeration  INTERNALUSERKEYNUMBER  enumeration  INTERNALUSERKEYID  enumeration  INTERNALUSERKEYDESCRIPTION  enumeration  INTERNALTECHNICALID  enumeration  INTERNALSHORTID  enumeration  INTERNALTYPE  enumeration  AGREEDID  enumeration  UNKNOWN  enumeration  UPIX

simpleType QuantityTypeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  QuantityType/@type
facets	Kind  Value  annotation  enumeration  ASSEMBLED  enumeration  DELIVERED  enumeration  DELIVERYREQUEST  enumeration  INVOICED  enumeration  ORDERED  enumeration  ORIGINALLYORDERED  enumeration  OUTSTANDING  enumeration  REBATEINKIND  enumeration  CONFIRMED  enumeration  OFFERED  enumeration  AGREED  enumeration  OFFERREQUEST

simpleType RateEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  RateType/@category
facets	Kind  Value  annotation  enumeration  S  enumeration  M  enumeration  E

simpleType SummaryTextTypeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/Summary/Text/@type
facets	Kind  Value  annotation  enumeration  AGREEDTYPE  enumeration  DOCUMENT

simpleType TaxTypeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  TaxType/Detail/AgreedTaxCode/@agreedTaxType
facets	Kind  Value  annotation  enumeration  INCLUSIVE  enumeration  EXCLUSIVE  enumeration  TAXFREE

simpleType TextEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/LineItem/Text/@type
facets	Kind  Value  annotation  enumeration  ITEMTEXT  enumeration  DESCRIPTION  enumeration  VARIANTDESCRIPTION  enumeration  ADDITIONALDESCRIPTION

simpleType TextTypeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DocumentType/Header/Text/@type
facets	Kind  Value  annotation  enumeration  AGREEDTYPE  enumeration  COMMENT  enumeration  DOCUMENT  enumeration  TITLE

simpleType UnitTypeEnum

type	restriction of xs:string
properties	base  xs:string
used by	attributes  DocumentType/LineItem/UnitRelations/BaseUnit/@unitType DocumentType/LineItem/UnitRelations/Unit/@unitType
facets	Kind  Value  annotation  enumeration  PURCHASE  enumeration  PACKAGING  enumeration  PRICE  enumeration  SALES  enumeration  STOCK  enumeration  BASE

complexType AmountType

diagram
type	extension of xs:decimal
properties	base  xs:decimal
used by	elements  AgentType/Amount AllowanceAndChargeType/Detail/Amount AllowanceAndChargeType/Total/Amount DocumentType/LineItem/Amount DocumentType/Summary/PaymentMethod/Amount TaxType/Detail/Amount AllowanceAndChargeType/Detail/BaseAmount MiscDataLineItemType/AllowanceOrCharge/BaseAmount TaxType/Detail/BaseAmount MiscDataLineItemType/Project/ExternalAmount PaymentTermsType/MinimumAmount DocumentType/Summary/TotalAmount TaxType/TotalAmount DocumentType/Summary/TotalAmountDue DocumentType/Summary/TotalAmountPaid TaxType/TotalBaseAmount
attributes	Name   Type   Use   Default   Fixed   annotation currency derived by: abans:CurrencyType required
annotation	documentation An Amount with a required Currency

attribute AmountType/@currency

type	restriction of abans:CurrencyType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}

complexType DataType

diagram
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
used by	elements  DocumentType/Header/AgreedData DocumentType/LineItem/AgreedData NameAddressType/AgreedData OnlineCustomerType/EBusinessParticipant/AgreedData OnlineCustomerType/AgreedData DocumentType/Header/AgreedExtendedTableData DocumentType/LineItem/AgreedExtendedTableData NameAddressType/AgreedExtendedTableData DocumentType/Header/AgreedFreeFieldData DocumentType/LineItem/AgreedFreeFieldData MiscDataLineItemType/Project/AgreedFreeFieldData NameAddressType/AgreedFreeFieldData DocumentType/Header/AgreedUserFieldData DocumentType/LineItem/AgreedUserFieldData DocumentType/Header/AgreedVariableData DocumentType/LineItem/AgreedVariableData MiscDataHeaderType/FreeDocumentGroupData

element DataType/StringField

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation agreedID xs:string required

attribute DataType/StringField/@agreedID

type	xs:string
properties	isRef  0 use  required

element DataType/NumberField

diagram
type	extension of xs:decimal
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation agreedID xs:string required

attribute DataType/NumberField/@agreedID

type	xs:string
properties	isRef  0 use  required

element DataType/DateField

diagram
type	extension of xs:date
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation agreedID xs:string required

attribute DataType/DateField/@agreedID

type	xs:string
properties	isRef  0 use  required

element DataType/BooleanField

diagram
type	extension of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation agreedID xs:string required

attribute DataType/BooleanField/@agreedID

type	xs:string
properties	isRef  0 use  required

element DataType/DateTimeField

diagram
type	extension of xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation agreedID xs:string required

attribute DataType/DateTimeField/@agreedID

type	xs:string
properties	isRef  0 use  required

element DataType/BinaryField

diagram
type	extension of xs:base64Binary
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation agreedID xs:string required

attribute DataType/BinaryField/@agreedID

type	xs:string
properties	isRef  0 use  required

complexType DateOrDateTimeRangeType

diagram
children	abans:From abans:Until
used by	elements  MiscDataHeaderType/PeriodOfService MiscDataLineItemType/PeriodOfService

element DateOrDateTimeRangeType/From

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DateOrDateTimeRangeType/Until

diagram
type	abans:DateOrDateTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

complexType DateTimeRangeType

diagram
children	abans:From abans:Until
used by	elements  OnlineCustomerType/EBusinessParticipant/ValidityRange OnlineCustomerType/EBusinessParticipant/DocumentTypeRelation/ValidityRange

element DateTimeRangeType/From

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DateTimeRangeType/Until

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

complexType PriceType

diagram
type	extension of xs:decimal
properties	base  xs:decimal
used by	element  DocumentType/LineItem/Price
attributes	Name   Type   Use   Default   Fixed   annotation currency abans:CurrencyType required         unit abans:UnitType optional         agreedUnit xs:string optional
annotation	documentation Price with required Currency and optional Unit attribute.

attribute PriceType/@currency

type	abans:CurrencyType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}

attribute PriceType/@unit

type	abans:UnitType
properties	isRef  0 use  optional

attribute PriceType/@agreedUnit

type	xs:string
properties	isRef  0 use  optional

complexType StringWithLanguageType

diagram
type	extension of xs:string
properties	base  xs:string
used by	elements  AllowanceAndChargeType/Detail/Description DocumentType/Summary/PaymentMethod/CreditCard/Description TaxType/Detail/Description MiscDataHeaderType/DocumentComment
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional
annotation	documentation A string with a Language

attribute StringWithLanguageType/@language

type	abans:LanguageType
properties	isRef  0 use  optional
facets	Kind  Value  annotation  pattern  \p{Ll}\p{Ll}

simpleType CountryCodeType

type	restriction of xs:string
properties	base  xs:string
used by	element  NameAddressType/CountryCode attributes  BankIDType/ID/@countryCode PartyType/TaxID/@countryCode
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}
annotation	documentation ISO 3166 Country id (2 uppercase letters)

simpleType CurrencyType

type	restriction of xs:string
properties	base  xs:string
used by	elements  DocumentType/Summary/BaseCurrency OnlineCustomerType/DefaultCurrency OnlineInfoType/DefaultCurrency DocumentType/Summary/PaymentMethod/DesiredCurrency DocumentType/Summary/DocumentCurrency attributes  BankInfoType/@currency AmountType/@currency PriceType/@currency
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}
annotation	documentation ISO 4217 Currency id (3 uppercase letters)

simpleType DateOrDateTimeType

type	union of (xs:dateTime, xs:date)
used by	elements  BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/BestBefore DeliveryInfoType/ConfirmedDate IDAndDateType/Date DeliveryInfoType/DeliveryDate DeliveryInfoType/DesiredDate DateOrDateTimeRangeType/From MiscDataHeaderType/PrintDate BatchOrLotOrSerialNumberType/BatchOrLotOrSerialNumberData/SellBy DateOrDateTimeRangeType/Until
annotation	documentation Date or DateTime. Usually, only the Date is used, e.g. for a Bill Date, but it's possible to add the time

simpleType EANType

type	xs:string
properties	base  xs:string
used by	element  PartyIDType/EAN
annotation	documentation EAN number

simpleType LanguageType

type	restriction of xs:string
properties	base  xs:string
used by	element  NameAddressType/Language attributes  DocumentType/@language TextType/@language StringWithLanguageType/@language NameAddressType/Text/@language
facets	Kind  Value  annotation  pattern  \p{Ll}\p{Ll}
annotation	documentation ISO 639 Language id (2 lowercase letters)

simpleType PartyReferenceType

type	restriction of xs:string
properties	base  xs:string
used by	attributes  AccountAssignmentType/@party DocumentType/LineItem/Reference/DocumentReference/@party ReferenceType/DocumentReference/@party AddressReferenceType/@party
facets	Kind  Value  annotation  enumeration  CUSTOMER  enumeration  VENDOR

simpleType PercentageType

type	xs:decimal
properties	base  xs:decimal
used by	elements  DiscountType/DiscountPercentage PaymentTermsType/PenaltyPercentage DocumentType/Summary/PaymentMethod/Percentage AgentType/Rate complexType  RateType
annotation	documentation A percent value

simpleType UnitType

type	xs:string
properties	base  xs:string
used by	elements  DocumentType/LineItem/UnitRelations/BaseUnit DocumentType/LineItem/UnitRelations/Unit attributes  DocumentType/LineItem/UnitInfo/@unit QuantityType/@unit PriceType/@unit
annotation	documentation Unit ID

complexType AddressReferenceType

diagram
children	abans:AddressNumber abans:DebitorNumber abans:CreditorNumber abans:LIONumber
used by	element  NameAddressType/AddressReference
attributes	Name   Type   Use   Default   Fixed   annotation party abans:PartyReferenceType required

attribute AddressReferenceType/@party

type	abans:PartyReferenceType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  CUSTOMER  enumeration  VENDOR

element AddressReferenceType/AddressNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element AddressReferenceType/DebitorNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element AddressReferenceType/CreditorNumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element AddressReferenceType/LIONumber

diagram
type	xs:long
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

complexType AgreedAppendixType

diagram
children	abans:Reference abans:ApplicationReference abans:CodeName abans:SalutationID abans:Alias abans:Miscellaneous
used by	element  NameAddressType/AgreedAppendix

element AgreedAppendixType/Reference

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Used for the number of this entity inside the company's database (ADR.INR or AKP.NR)

element AgreedAppendixType/ApplicationReference

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The content of this element is defined as follows: For CUSTOMER: ABACUS Debitor Number For DELIVERYADDRESS: ABACUS LIO number For PAYER: Up to all versions prior to ULC versions: ABACUS FAO number For VENDOR: Kreditornumber For BILLER: Kreditornumber

element AgreedAppendixType/CodeName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Kurzname"

element AgreedAppendixType/SalutationID

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Used for the ID of the salutation

element AgreedAppendixType/Alias

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element AgreedAppendixType/Miscellaneous

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex mixed  true
annotation	documentation Add your own elements and tags below this

complexType NameAddressType

diagram
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
used by	elements  AbaDoc/Address NameAddressType/Contact OnlineCustomerType/DeliveryNameAddress BankIDType/NameAddress PartyType/NameAddress SupplierType/NameAddress OnlineCustomerType/NameAddress
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034
annotation	documentation Name and address

attribute NameAddressType/@creationDateTime

type	xs:dateTime
properties	isRef  0
annotation	documentation Since 2.0034

element NameAddressType/Salutation

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element NameAddressType/Title

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element NameAddressType/CompanyName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation If used in Header/VendorParties/Vendor: swissDIGIN: K-02-03-a.

element NameAddressType/FirstName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element NameAddressType/LastName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element NameAddressType/AdditionalLine

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Put additional address information here. Example: Private persons: c/o Fam. Christen Companies: Accounting department

element NameAddressType/Street

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Line
annotation	documentation If in Header/VendorParties/Vendor: swissDIGIN: K-02-03-b.

element NameAddressType/Street/Line

diagram
type	xs:string
properties	isRef  0 content  simple

element NameAddressType/ZIP

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Postal ID of city (and suburb). If in Header/VendorParties/Vendor: swissDIGIN: K-02-03-d

element NameAddressType/City

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation City. If in Header/VendorParties/Vendor: swissDIGIN: K-02-03-c

element NameAddressType/State

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation US and Canada only

element NameAddressType/CountryCode

diagram
type	abans:CountryCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}
annotation	documentation 2 digit country code, according to ISO 3166. Examples: "CH" = Switzerland, "DE" = Germany, "FR" = France. If in Header/VendorParties/Vendor: swissDIGIN: K-02-03-e

element NameAddressType/Country

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Full name of country. This element can be language dependent.

element NameAddressType/Email

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Email address

element NameAddressType/Phone

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation kind abans:PhoneKindEnum optional         agreedType xs:string optional
annotation	documentation If agreedType is used, kind must be equals "AGREED". (ABACUS only: Possible values for agreedType are "TEL2" or "TELEX")

attribute NameAddressType/Phone/@kind

type	abans:PhoneKindEnum
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  BUSINESS  enumeration  PRIVATE  enumeration  MOBILE  enumeration  FAX  enumeration  PAGER  enumeration  AGREED

attribute NameAddressType/Phone/@agreedType

type	xs:string
properties	isRef  0 use  optional

element NameAddressType/Website

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation URL to the company or personal web site. It's recommended to omit "http://"

element NameAddressType/Birthdate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Date of birth.

element NameAddressType/Text

diagram
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation language abans:LanguageType optional

attribute NameAddressType/Text/@language

type	abans:LanguageType
properties	isRef  0 use  optional
facets	Kind  Value  annotation  pattern  \p{Ll}\p{Ll}

element NameAddressType/Contact

diagram
type	abans:NameAddressType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034
annotation	documentation Information about a specific individual inside that organisation

element NameAddressType/AgreedExtendedTableData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for Extended Tables in ABACUS

element NameAddressType/AgreedFreeFieldData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Use only for free fields in ABACUS

element NameAddressType/AgreedAppendix

diagram
type	abans:AgreedAppendixType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Reference abans:ApplicationReference abans:CodeName abans:SalutationID abans:Alias abans:Miscellaneous
annotation	documentation Mutually agreed appendix information

element NameAddressType/AgreedData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField
annotation	documentation Used for B2B mutually agreed data exchange. Since 2.0034.

element NameAddressType/AddressReference

diagram
type	abans:AddressReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:AddressNumber abans:DebitorNumber abans:CreditorNumber abans:LIONumber
attributes	Name   Type   Use   Default   Fixed   annotation party abans:PartyReferenceType required
annotation	documentation Since 2.0034.

element NameAddressType/Language

diagram
type	abans:LanguageType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  \p{Ll}\p{Ll}

simpleType PhoneKindEnum

type	restriction of xs:string
properties	base  xs:string
used by	attribute  NameAddressType/Phone/@kind
facets	Kind  Value  annotation  enumeration  BUSINESS  enumeration  PRIVATE  enumeration  MOBILE  enumeration  FAX  enumeration  PAGER  enumeration  AGREED

complexType OnlineCustomerType

diagram
children	abans:NameAddress abans:DeliveryNameAddress abans:AccountID abans:DefaultCurrency abans:TransactionDateTime abans:EBusinessParticipant abans:AgreedData
used by	element  AbaDoc/OnlineCustomer
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034

attribute OnlineCustomerType/@creationDateTime

type	xs:dateTime
properties	isRef  0
annotation	documentation Since 2.0034

element OnlineCustomerType/NameAddress

diagram
type	abans:NameAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034

element OnlineCustomerType/DeliveryNameAddress

diagram
type	abans:NameAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:Salutation abans:Title abans:CompanyName abans:FirstName abans:LastName abans:AdditionalLine abans:Street abans:ZIP abans:City abans:State abans:CountryCode abans:Country abans:Email abans:Phone abans:Website abans:Birthdate abans:Text abans:Contact abans:AgreedExtendedTableData abans:AgreedFreeFieldData abans:AgreedAppendix abans:AgreedData abans:AddressReference abans:Language
attributes	Name   Type   Use   Default   Fixed   annotation creationDateTime xs:dateTime          documentation Since 2.0034

element OnlineCustomerType/AccountID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineCustomerType/DefaultCurrency

diagram
type	abans:CurrencyType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}

element OnlineCustomerType/TransactionDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Since 2.0034

element OnlineCustomerType/EBusinessParticipant

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:InternalID abans:ParticipantSenderID abans:ParticipantReceiverID abans:ValidityRange abans:DocumentTypeRelation abans:AgreedData
attributes	Name   Type   Use   Default   Fixed   annotation messageType abans:MessageType          isNew xs:boolean optional

attribute OnlineCustomerType/EBusinessParticipant/@messageType

type	abans:MessageType
properties	isRef  0
facets	Kind  Value  annotation  enumeration  REGISTRATION  enumeration  DEREGISTRATION  enumeration  MODIFICATION

attribute OnlineCustomerType/EBusinessParticipant/@isNew

type	xs:boolean
properties	isRef  0 use  optional

element OnlineCustomerType/EBusinessParticipant/InternalID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineCustomerType/EBusinessParticipant/ParticipantSenderID

diagram
type	abans:ParticipantIDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:NetworkID abans:ID abans:SubID

element OnlineCustomerType/EBusinessParticipant/ParticipantReceiverID

diagram
type	abans:ParticipantIDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:NetworkID abans:ID abans:SubID

element OnlineCustomerType/EBusinessParticipant/ValidityRange

diagram
type	abans:DateTimeRangeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:From abans:Until

element OnlineCustomerType/EBusinessParticipant/DocumentTypeRelation

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	abans:DocumentType abans:DocumentCategory abans:ValidityRange
attributes	Name   Type   Use   Default   Fixed   annotation isNew xs:boolean optional   false

attribute OnlineCustomerType/EBusinessParticipant/DocumentTypeRelation/@isNew

type	xs:boolean
properties	isRef  0 default  false use  optional

element OnlineCustomerType/EBusinessParticipant/DocumentTypeRelation/DocumentType

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation 6=Bill etc.

element OnlineCustomerType/EBusinessParticipant/DocumentTypeRelation/DocumentCategory

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Belegart". Exmaples: R=Bill, G=Credit advice

element OnlineCustomerType/EBusinessParticipant/DocumentTypeRelation/ValidityRange

diagram
type	abans:DateTimeRangeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:From abans:Until

element OnlineCustomerType/EBusinessParticipant/AgreedData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField

element OnlineCustomerType/AgreedData

diagram
type	abans:DataType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	abans:StringField abans:NumberField abans:DateField abans:BooleanField abans:DateTimeField abans:BinaryField

complexType OnlineInfoType

diagram
children	abans:GUID abans:UserAccountName abans:Password abans:IsPasswordCrypted abans:HasPasswordChanged abans:IsNewsletterEnabled abans:IsDisabled abans:IsInactive abans:WasDeleted abans:IsEBusinessEnabled abans:OnlyWithPrePayment abans:DefaultCurrency abans:DefaultHierarchy
used by	element  PartyType/OnlineInfo

element OnlineInfoType/GUID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Shopper GUID=SID"

element OnlineInfoType/UserAccountName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation "Shopper web account name"

element OnlineInfoType/Password

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/IsPasswordCrypted

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/HasPasswordChanged

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/IsNewsletterEnabled

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/IsDisabled

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation No login allowed

element OnlineInfoType/IsInactive

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/WasDeleted

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/IsEBusinessEnabled

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/OnlyWithPrePayment

diagram
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element OnlineInfoType/DefaultCurrency

diagram
type	abans:CurrencyType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  \p{Lu}\p{Lu}\p{Lu}

element OnlineInfoType/DefaultHierarchy

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

simpleType MessageType

type	restriction of xs:string
properties	base  xs:string
used by	attribute  OnlineCustomerType/EBusinessParticipant/@messageType
facets	Kind  Value  annotation  enumeration  REGISTRATION  enumeration  DEREGISTRATION  enumeration  MODIFICATION

complexType ParticipantIDType

diagram
children	abans:NetworkID abans:ID abans:SubID
used by	elements  OnlineCustomerType/EBusinessParticipant/ParticipantReceiverID OnlineCustomerType/EBusinessParticipant/ParticipantSenderID PartyIDType/ReceiverID PartyIDType/SenderID

element ParticipantIDType/NetworkID

diagram
type	xs:string
properties	isRef  0 content  simple
annotation	documentation Id of the network, e.g. "PayNet"

element ParticipantIDType/ID

diagram
type	xs:string
properties	isRef  0 content  simple
annotation	documentation Id of the participant in that network

element ParticipantIDType/SubID

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Additinal id of the participant. Can be used for purely internal structures of that participant, as long as this value is always passed along. Examples: Business Unit number, subsidiary branch id, business area id.

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
